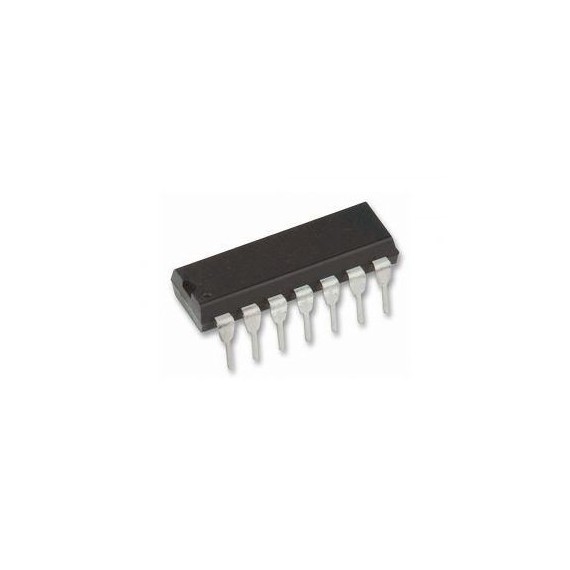

NAND Gate - 74LS10N

05-00974110
Gross Weight: 0kg
Made in: USA
Out of Stock
Product out of stock
Low stock in store
0.75
Without VAT 0.60

We (GRobotronics) will add your email address to a special mailing list for this product. Once the product is in stock, you’ll get an email about it automatically, and your email address will be removed from the product’s mailing list.

The data will be visible to some members of our staff. If you’d like to have your personal data removed, send an email to dpo@grobotronics.com.

If you believe that your personal data has been misused, you have the right to lodge a complaint with a supervisory authority. We’re obliged by EU General Data Protection Regulation to let you know about this right; we don’t actually intend to misuse your data.

Add to Cart
WISHLIST COMPARE

SPECIFICATIONS

Case:
DIP14

SPECIFICATIONS

  • Product: Single-Function Gate
  • Logic Function: NAND
  • Logic Family: LS
  • Number of Gates: 3 Gate
  • Number of Input Lines: 3 Input
  • Number of Output Lines: 1 Output
  • High Level Output Current: - 20 mA
  • Low Level Output Current: 1 mA
  • Propagation Delay Time: 5 ns
  • Supply Voltage - Max: 5.25 V
  • Supply Voltage - Min: 4.75 V
  • Minimum Operating Temperature: 0 C
  • Maximum Operating Temperature: + 70 C
  • Mounting Style: Through Hole
  • Package/Case: PDIP-14
  • Packaging: Tube
  • Input Type: TTL
  • Logic Type: 3-Input NAND
  • Operating Supply Current: 27 uA
  • Operating Supply Voltage: 5 V
  • Operating Temperature Range: 0 C to + 70 C
  • Output Type: TTL

Διαστάσεις

  • Height: 4.57 mm
  • Length: 19.3 mm
  • Width: 6.35 mm
