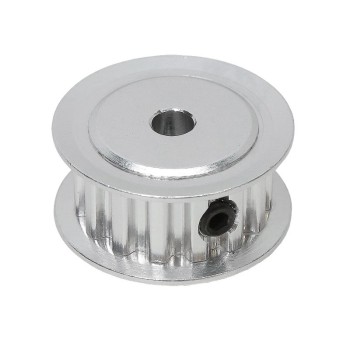

Pinion Pulley XL - 15T - 6mm Bore

από SERVOCITY

These shaft-mountable aluminum timing pulleys use XL timing belts and attach to a 6mm output shaft with a set screw.

17-00615432
Ογκομετρικό βάρος: 0.01kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: SERVOCITY
Part Number: 615432
Χώρα Προέλευσης: Κίνα
Διαθέσιμο
Αποστολή σε 24 ώρες
Χωρίς απόθεμα στο φυσικό κατάστημα
11.10
Χωρίς ΦΠΑ 8.95
+

ΠΕΡΙΓΡΑΦΗ

These 15 tooth pulleys are able to run inside of our aluminum Actobotics™ channel. The pulleys are .40” inside the flanges to allow for belts up to 3/8” in width. The pulley can be used for building pan and tilt systems, camera sliders, XY tables, robotic drive mechanisms, etc. Constructed of 6061 T6 aluminum.
The 6mm Bore pulley is compatible with all gear motors with 6mm shaft.

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
:
SERVOCITY
Part Number:
615432
Μικτό Βάρος:
0.013605kg
Χώρα Προέλευσης:
Κίνα
Τύπος:
XL
Δόντια:
15T
Εσωτερική Διάμετρος:
6mm
Υλικό:
Aluminum

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • Material: Aluminum 6061 T6
  • Shaft Mount Style: 10-32 Set Screw
  • Max Timing Belt Width: 0.375" (3/8)
  • Bore: 6mm
  • Tooth Count: 15
