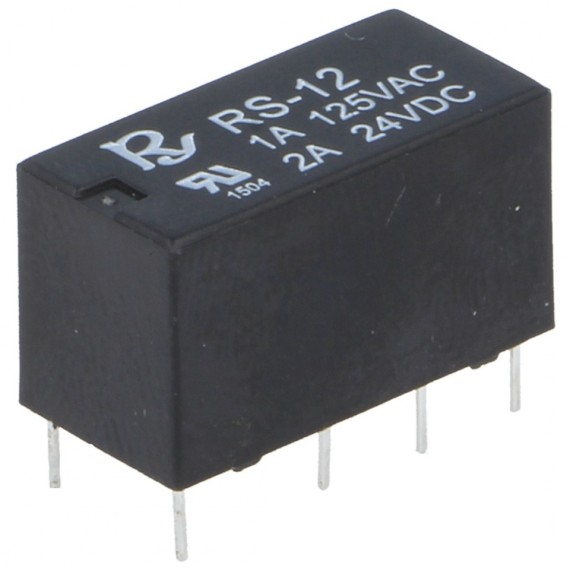

Relay 12V DPDT (1A/125V)

05-00010535
Made in: Taiwan
In Stock
Ships in 24 Hours
No stock in retail store
1.20
Without VAT 0.97
+
WISHLIST COMPARE

SPECIFICATIONS

Rated Coil Voltage:
12VDC
Contact Current Max. :
2A
Type / Contacts Config.:
  • DPDT

EXTRA SPECIFICATIONS

  • Type of relay: Electromagnetic
  • Contacts configuration: DPDT
  • Rated coil voltage: 12V DC
  • AC contacts rating @R (at resistance load): 1 A / 125 VAC
  • DC contacts rating @R (at resistance load): 1.25 A / 30 VDC
  • Contact current max.: 2A
  • Switched voltage: max 125V AC, max 30V DC
  • Relay variant: Miniature
  • Mounting: PCB
  • Coil resistance: 960Ω
  • Operate time: 6ms
  • Release time: 3ms
  • Coil power consumption: 150mW
  • Operating temperature: -30...70°C
  • Relay series: RS
  • Contact resistance: 100mΩ
  • Contact material: AgCdO
  • Coil current: 12.5mA

Dimensions

  • Body: 20.2 x 9.8 x 11.5mm
  • Terminal pitch: 5.08mm
