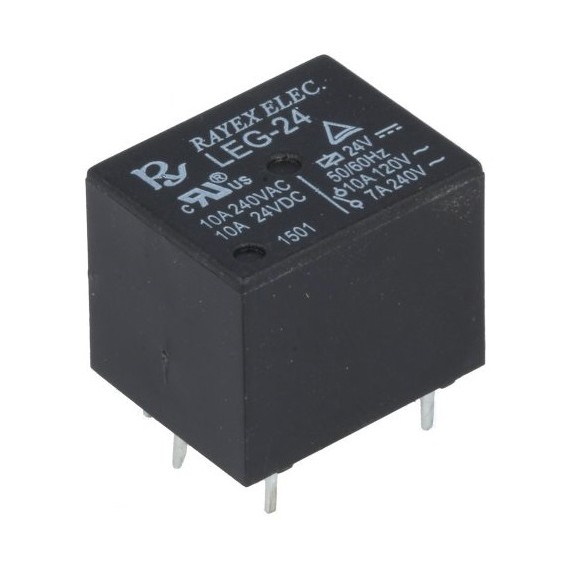

Relay 24V SPDT (SRD)

05-00050024
Made in: Taiwan
In Stock
Ships in 24 Hours
Available in store
0.60
Without VAT 0.48
+
WISHLIST COMPARE

SPECIFICATIONS

Rated Coil Voltage:
24VDC
Contact Current Max. :
10A
Type / Contacts Config.:
  • SPDT

EXTRA SPECIFICATIONS

  • Contacts configuration: SPDT
  • Rated coil voltage: 24V DC
  • AC contacts rating: 10 A / 120 VAC
  • DC contacts rating: 10 A / 24 VDC
  • Contact current max.: 10A
  • Switched voltage max: 240V AC, max 100V DC
  • Relay variant: miniature
  • Mounting: PCB
  • Coil resistance: 1.6kΩ
  • Operate time: 8ms
  • Release time: 8ms
  • Coil power consumption: 360mW
  • Operating temperature: -25...80°C
  • Relay series: LEG
  • Contact resistance: 100mΩ
  • Coil current: 15mA

Dimensions

  • Body: 19.5 x 15.8 x 15mm
  • Contacts pitch: 2mm
