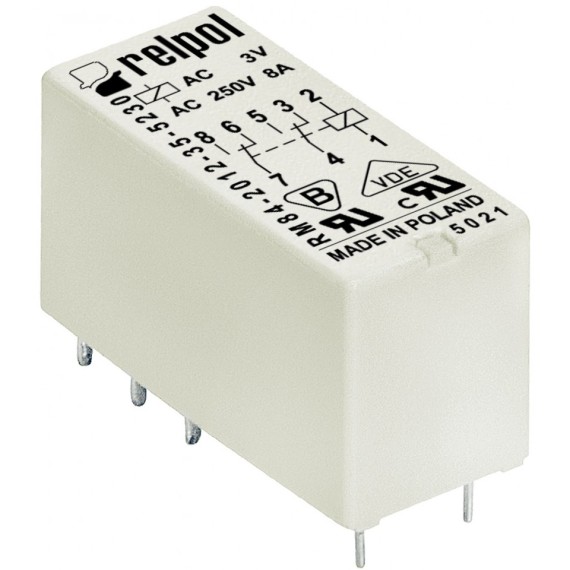

Relay 3V DPDT (8A/250AV)

by RELPOL
05-00020120
Company: RELPOL
Made in: Poland
Out of Stock
Product out of stock
Available in store
1.50
Without VAT 1.21

We (GRobotronics) will add your email address to a special mailing list for this product. Once the product is in stock, you’ll get an email about it automatically, and your email address will be removed from the product’s mailing list.

The data will be visible to some members of our staff. If you’d like to have your personal data removed, send an email to dpo@grobotronics.com.

If you believe that your personal data has been misused, you have the right to lodge a complaint with a supervisory authority. We’re obliged by EU General Data Protection Regulation to let you know about this right; we don’t actually intend to misuse your data.

Add to Cart
WISHLIST COMPARE

SPECIFICATIONS

Rated Coil Voltage:
3VDC
Contact Current Max. :
8A
Type / Contacts Config.:
  • DPDT

EXTRA SPECIFICATIONS

  • Type of relay: Electromagnetic
  • Contacts configuration: DPDT
  • Rated coil voltage: 3V DC
  • AC contacts rating @R(at resistance load): 8 A / 250 VAC
  • DC contacts rating @R(at resistance load): 8 A / 24 VDC
  • Contact current max.: 8A
  • Switched voltage: max 440V AC, max 250V DC
  • Relay variant: Miniature
  • Mounting: PCB
  • Coil resistance: 22Ω
  • Coil voltage min.: 2.1V DC
  • Coil voltage max.: 7.6V DC
  • Operate time: 7ms
  • Release time: 3ms
  • Coil power consumption: 480mW
  • IP rating: IP67
  • Mechanical durability: 30000000cycles
  • Operating temperature: -40...85°C
  • Relay series: RM84
  • Contact resistance: 100mΩ
  • Contact material: AgNi
  • Number of pins: 8

Dimensions

  • 29 x 12.7 x 15.7mm
  • Height: 15.7mm
  • Terminal pitch: 5mm
  • Weight: 14g
