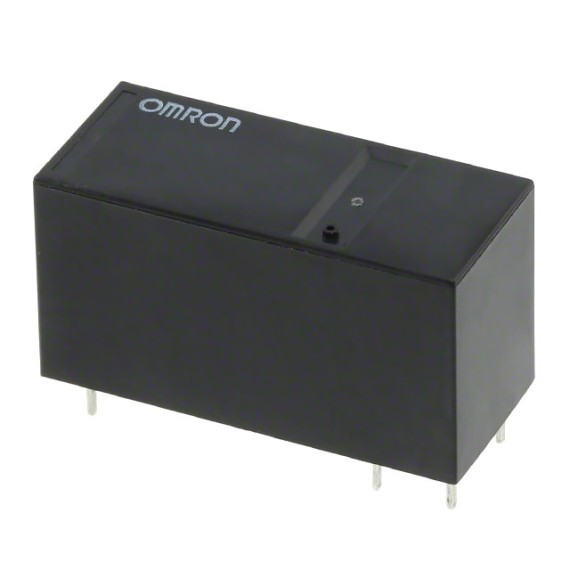

Relay Latching 12V - 16A/250VAC

by OMRON
05-00010529
Company: OMRON
Made in: China
Out of Stock
Product out of stock
Low stock in store
4.99
Without VAT 4.02

We (GRobotronics) will add your email address to a special mailing list for this product. Once the product is in stock, you’ll get an email about it automatically, and your email address will be removed from the product’s mailing list.

The data will be visible to some members of our staff. If you’d like to have your personal data removed, send an email to dpo@grobotronics.com.

If you believe that your personal data has been misused, you have the right to lodge a complaint with a supervisory authority. We’re obliged by EU General Data Protection Regulation to let you know about this right; we don’t actually intend to misuse your data.

Add to Cart
WISHLIST COMPARE

SPECIFICATIONS

Rated Coil Voltage:
12VDC
Contact Current Max. :
16A
Type / Contacts Config.:
  • SPST

EXTRA SPECIFICATIONS

  • Relay type: electromagnetic
  • Contacts configuration: SPST
  • Rated coil voltage: 12V DC
  • AC contacts rating: 16 A / 250 VAC
  • DC contacts rating: 16 A / 24 VDC
  • Switched voltage:max 250V AC, max 24V DC
  • Relay variant: bistable (Latching)
  • Mounting: PCB
  • Coil resistance: 240Ω
  • Operate time: 15ms
  • Release time: 15ms
  • Coil power consumption: 750mW
  • Operating temperature: -40...85°C
  • Relay series: G5RL-K
  • Contact resistance: 100mΩ
  • Coil current: 62.5mA
  • Relay features: two coils

Dimensions

  • 29 x 12.7 x 15.7mm
  • Terminal pitch:5mm
