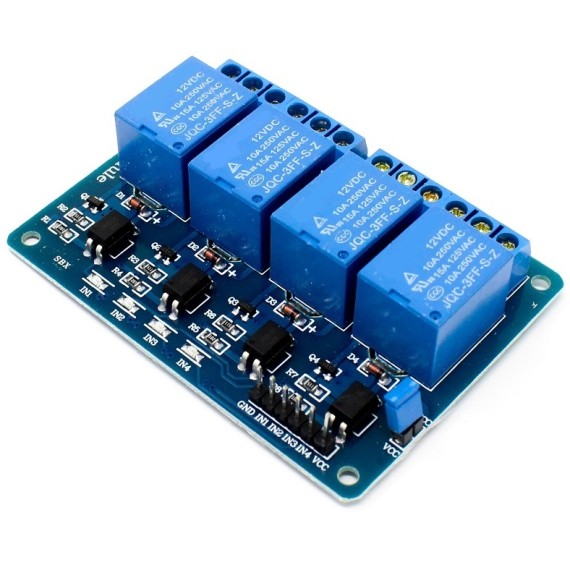

Relay Module - 4 Channel 12V

από OEM
This 4 Channel Relay Module (with light coupling) 12V module meet the safety standard as control areas and load area have the isolation groove. Optical...
19-00010779
Ογκομετρικό βάρος: 0.06kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: OEM
Χώρα Προέλευσης: Κίνα
Διαθέσιμο
Αποστολή σε 24 ώρες
Χωρίς απόθεμα στο φυσικό κατάστημα
5.90
Χωρίς ΦΠΑ 4.76
+
Τιμές βάση ποσότητας (Λιανική - Χονδρική):
Ποσότητα 10+
Τιμή 4.72

ΠΕΡΙΓΡΑΦΗ

This 4 Channel Relay Module (with light coupling) 12V module meet the safety standard as control areas and load area have the isolation groove. Optical coupling isolation module.

The triggering of 4 Channel Relay Module is reliable, more stable. The double FR–4 circuit board design, high-end SMT process. It has power and relay operation instructions. Relays terminals (C, NC, NO) are accessible through screw terminals which makes wiring up the board very easy.

The inputs of 4 Channel 12V Relay Module are isolated to protect any delicate control circuitry.

A wide range of microcontrollers such as Arduino, AVR, PICARM and so on can control it.

The use of such high-voltage relay eliminates the risk of heating up of the relay as electromechanical relay limit the current consumption in accordance with a voltage rating.



ΣΗΜΕΙΩΣΕΙΣ

  • Working voltage 12V --> Requires an external power supply to opperate the relays.
  • Includes optocouplers so that your Arduino or Raspberry Pi does not get damaged by reverse voltages.

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
:
OEM
Μικτό Βάρος:
0.055kg
Χώρα Προέλευσης:
Κίνα
Τάση Πηνίου:
12VDC
Μέγιστο Φορτίο:
10A
Τύπος / Διαμόρφωση Επαφών:
  • SPDT
  • Module

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • Operating Voltage: 12V DC
  • Equipped with high-current relay: 10A@250VAC / 10A@30VDC
  • It can control both AC and DC appliances such as Solenoids, Motors, lights, fans, etc
  • High-quality screw terminals (Terminal Block) provided (C, NC, NO) for quick and easy connection
  • A freewheeling diode to protect your microcontroller
  • Input Signal Pin connected to Burg stick for easy accessibility
  • LED Status indicators to indicate the relay ON/OFF status
  • Mounting holes provided

Module interface:

  • The positive (according to the relay voltage VCC: connect power supply)
  • GND: connect power negative
  • IN1: relay module (effective) low-level trigger signal trigger end
  • IN2: relay module (effective) low-level trigger signal trigger end
  • IN3: relay module (effective) low-level trigger signal trigger end
  • IN4: relay module (effective) low-level trigger signal trigger end
