Relay Reed 5V SPST-NO (1A/250V)

05-00001741
Out of Stock
Product out of stock
No stock in retail store
1.50
Without VAT 1.21

We (GRobotronics) will add your email address to a special mailing list for this product. Once the product is in stock, you’ll get an email about it automatically, and your email address will be removed from the product’s mailing list.

The data will be visible to some members of our staff. If you’d like to have your personal data removed, send an email to dpo@grobotronics.com.

If you believe that your personal data has been misused, you have the right to lodge a complaint with a supervisory authority. We’re obliged by EU General Data Protection Regulation to let you know about this right; we don’t actually intend to misuse your data.

Add to Cart
WISHLIST COMPARE

SPECIFICATIONS

Rated Coil Voltage:
5VDC
Contact Current Max. :
1A
Type / Contacts Config.:
  • SPST

EXTRA SPECIFICATIONS

  • Type of relay: Reed
  • Contacts configuration: SPST-NO
  • Rated coil voltage: 5V DC
  • Contact current max.: 1A
  • Switched voltage max: 250V DC
  • Switching capacity: 10VA
  • Coil resistance: 500Ω
  • Coil power consumption: 50mW
  • Mounting: PCB
  • Case: SIL
  • Contact resistance: 150mΩ
  • Coil voltage min.: 3.75V DC
  • Coil voltage max.: 16V DC
  • Operating temperature: -40...85°C
  • Operate time: 1ms
  • Release time: 0.5ms
  • Contact material: AgCdO
  • Relay series: R1

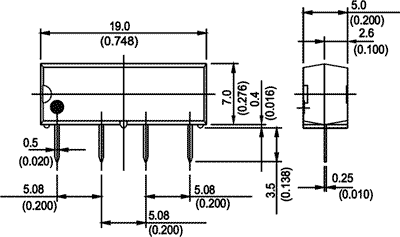

Dimensions

  • 19 x 5 x 7mm
  • Terminal pitch: 5.08mm
