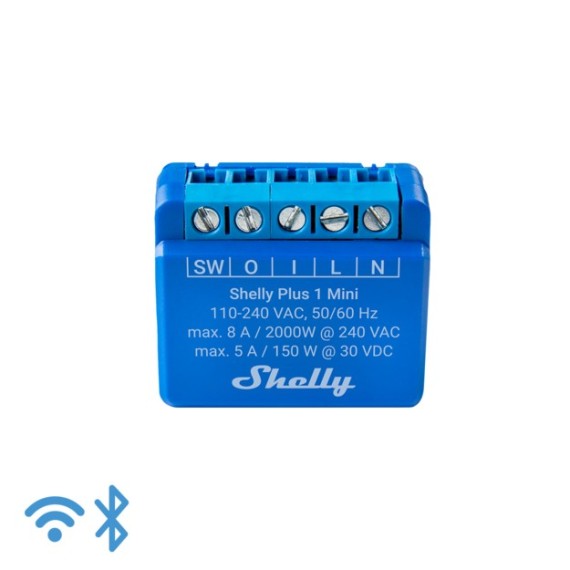

Shelly Plus 1 mini - Relay Switch 8A

από Shelly
The smallest relay switch in the world for smart control. Automate your lights, garage door, irrigation system, or other small electrical appliances in less than 10 minutes and control them from anywhere. Small enough to fit behind any wall switch or socket, Shelly Plus 1 Mini can be retrofitted and is highly compatible with your existing smart ecosystem.​
18-00016709
Ογκομετρικό βάρος: 0kg
Εγγύηση: 12 Μήνες Εγγύηση Κατασκευαστή
Κατασκευαστής: Shelly
Part Number: SPL1
Διαθέσιμο
Αποστολή σε 24 ώρες
Χωρίς απόθεμα στο φυσικό κατάστημα
15.90
Χωρίς ΦΠΑ 12.82
+

ΠΕΡΙΓΡΑΦΗ

Wi-Fi-operated smart switch, 1 channel 8 A

The smallest relay switch in the world for smart control. Automate your lights, garage door, irrigation system, or other small electrical appliances in less than 10 minutes and control them from anywhere. Small enough to fit behind any wall switch or socket, Shelly Plus 1 Mini can be retrofitted and is highly compatible with your existing smart ecosystem.​



  • No hub required! Easy control through the Shelly Smart Control app, most platforms and protocols, as well as voice assistants. Use it with Alexa, Home Assistant or your preferred automation system.
  • Supports up to 8 A at 240 VAC and 5 A at 30 VDC
  • Dry contacts (potential-free)​ - option for contactor control
  • Wi-Fi range extender & Bluetooth gateway
  • Extremely fast processor for immediate reaction – ESP32​
  • Supports scripting, webhooks, MQTT, WebSocket, HTTPS, UDP, TLS and custom certificates

Mini Size, Mini Price

Designed with convenience in mind, these mini relays have all the capabilities of the Plus series fit into a compact and space-saving form factor. With their size reduced by 35% of the Shelly Plus devices, the Shelly Plus Mini are perfect for those tight spaces where traditional relays simply won't fit. Despite their small size, the Shelly Plus Mini devices don't compromise on performance or functionality.

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
12 Μήνες Εγγύηση Κατασκευαστή
Κατασκευαστής
:
Shelly
Part Number:
SPL1
Μικτό Βάρος:
0.001kg

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

PHYSICAL

  • Size: 29x35x16 ±0.5 mm (HxWxD)
  • Weight: 19 ±1 g
  • Mounting: Wall box
  • Screw terminals max torque: 0.4 Nm
  • Conductor cross section: 0.5 to 1.5 mm² / 20 to 16 AWG
  • Conductor stripped length: 5 to 6 mm
  • Shell material: Plastic
  • Color: Blue

ENVIRONMENTAL

  • Ambient temperature: -20 °C to 40 °C
  • Humidity 30 % to 70 % RH
  • Max. altitude 2000 m

FIRMWARE CAPABILITIES

  • Schedules: 20
  • Webhooks (URL actions): 20 with 5 URLs per hook
  • MQTT: Yes
  • UDP: Yes
  • Scripting: Yes

MCU

  • CPU: ESP32-C3
  • Flash: 4 MB

ELECTRICAL

  • Power supply:   110 - 240 VAC
  • Relay:   Dry, NO contact, 1-pole, µ contact
  • External protection: 10 A, tripping characteristic B or C, 6 kA interrupting rating, Energy limiting class 3
  • Power consumption: < 1.2 W
  • Output circuits ratings
    • Max switching voltage AC: 240 V
    • Max switching voltage DC: 30 V
    • Max switching current AC: 8A
    • Max switching current DC: 5A
    • Max switching power AC: 2000 W
    • Max switching power DC: 150 W
  • Power measurement: No
  • Voltage protection / Cutoff: No
  • Current protection / Cutoff: No
  • Max power protection / Cutoff: No

RADIO

  • RF band: 2400 - 2495 MHz
  • Max. RF power:<20 dBm
  • Wi-Fi protocol: 802.11 b/g/n
  • Wi-Fi Range: Up to 30 m indoors and 50 m outdoors (Depends on local conditions)
  • Bluetooth Protocol: 4,2
  • Bluetooth Range: Up to 10 m indoors and 30 m outdoors (Depends on local conditions)

ΑΡΧΕΙΑ



ΒΙΝΤΕΟ

Shelly Plus 1 Mini - Installation video

This video contains demonstrational wiring for Shelly Plus 1 Mini and inclusion in the Shelly Smart Control Application. Shelly devices can also be used with various smart home protocols, platforms, and voice assistants.
