SM5100B Evaluation Board

03-00009427
CEL-09427
ΚατασκευαστήςSparkFun Electronics Part NumberCEL-09427
Διαθέσιμο
Αποστολή σε 24 ώρες
€7490 -60%
€2996
SparkFun Electronics
Ποσοτικές εκπτώσεις:
Ποσότητα
10+
Τιμή
€71.16
+ −
Αγαπημένα
Κάνε μια ερώτηση
Gropbotronics Store Availability
Διαθεσιμότητα Καταστημάτων
Πληρωμή & Μεταφορικά
This is an evaluation board for the SM5100B GSM/GPRS module everything you need to get started with the cellular module is included on this board. With FTDI's FT232RL connected up to UART0 of the SM5100B you can send AT commands from a PC terminal straight to the module.

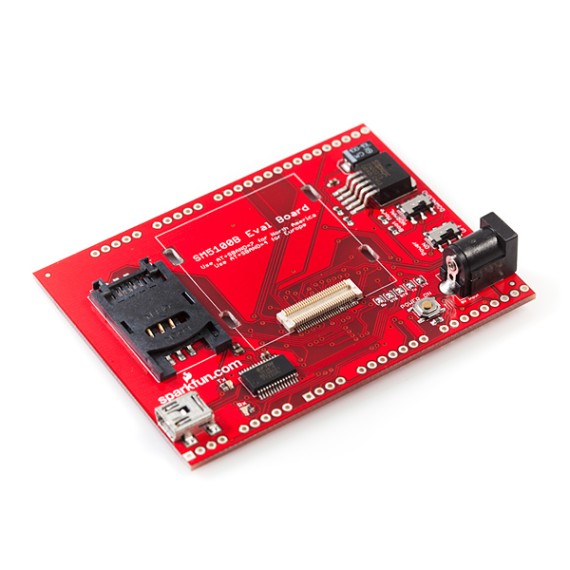

This board comes as shown in the picture with the 60-pin SM5100B mating connector, SIM card socket, SPX29302 3.8VDC high-current voltage regulator, FT232RL USB-to-UART, Mini-B USB connector, and more supporting circuitry. The SM5100B module is not included.
  • 60-pin SM5100B mating connector populated on board
  • Power from barrel jack regulated to 3.8VDC
  • SM5100B UART0 connected to FT232RL UART-to-USB chip
  • Mini-B USB connector integrated
  • All pins of the SM5100B broken out to 0.1" pitch headers
  • SIM socket integrated with SM5100B and populated on-board
  • ON/OFF and Boot mode SPDT switches
  • POWER ON momentary push-button switch
  • Red power indicator LED
  • RX, TX LEDs
Κατασκευαστής
SparkFun Electronics
Part Number
CEL-09427
Εγγύηση
Ως εξάρτημα, δεν καλύπτεται
Καθ. Βάρος
0.0253kg
