SparkFun Rotary Switch Breakout

Κωδικός:

03-00013098

Part Number: BOB-13098

ΚατασκευαστήςSparkFun Electronics Part NumberBOB-13098

Διαθέσιμο

Αποστολή σε 24 ώρες

€2⁷⁰

Ποσοτικές εκπτώσεις:

Ποσότητα

10+

Τιμή

€2.57

+ −

Κάνε μια ερώτηση

Διαθεσιμότητα Καταστημάτων

Πληρωμή & Μεταφορικά

Περιγραφή
Χαρακτηριστικά

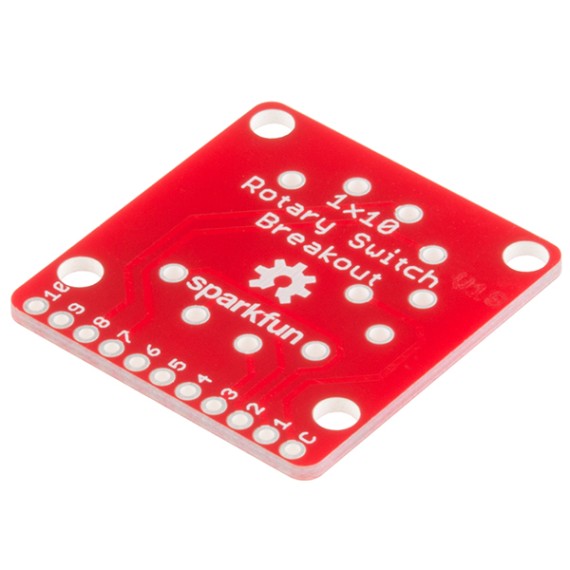

This is the SparkFun Rotary Switch Breakout, a very simple board designed to easily provide you access to each pin on our 10-position rotary switches. This breakout allows you to easily add a rotary switch to your next project without having to worry about attaching its unique footprint to a custom board or solderless breadboard. All you need to do is solder the 10-position rotary switch into the breakout (using the silkscreen on the board as a guide) and each pin will become available for breadboard or hookup wire compatibility.

Each one of these boards breaks out the common ( C ), 1, 2, 3, 4, 5, 6, 7, 8, 9, and 10 positions on the board into 0.1" spaced pins.

Note: A 10-position rotary switch is NOT included with this breakout. Check the Recommended Products section below for the correct switch.
