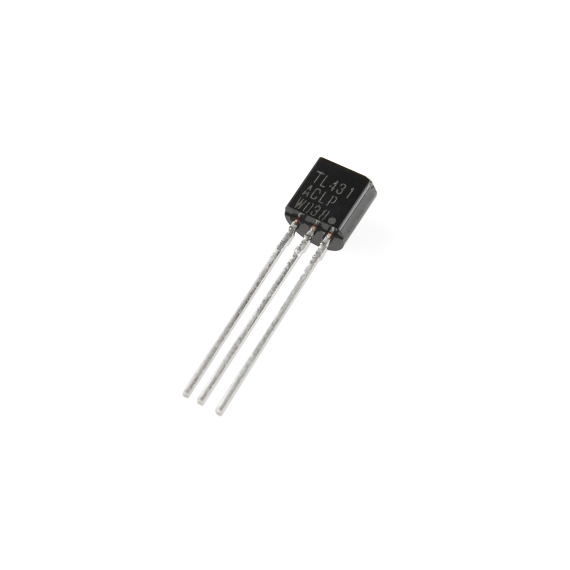

TL431 - Voltage Reference

The TL431 is a three−terminal programmable shunt regulator diode. This monolithic IC voltage reference operates as a low temperature coefficient zener which...
05-00043100
Ογκομετρικό βάρος: 0kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: Texas Instruments
Διαθέσιμο
Αποστολή σε 24 ώρες
Χωρίς απόθεμα στο φυσικό κατάστημα
0.80
Χωρίς ΦΠΑ 0.65
+
Τιμές βάση ποσότητας (Λιανική - Χονδρική):
Ποσότητα 10+ 50+
Τιμή 0.64 0.56

ΠΕΡΙΓΡΑΦΗ

The TL431 is a three−terminal programmable shunt regulator diode. This monolithic IC voltage reference operates as a low temperature coefficient zener which is programmable from Vref to 36 V with two external resistors. They exhibit a wide operating current range of 1.0 mA to 100 mA with a typical dynamic impedance of 0.22 Ohms.

The characteristics of these references make them excellent replacements for zener diodes in many applications such as digital voltmeters, power supplies, and op-amp circuitry. The 2.5 V reference makes it convenient to obtain a stable reference from 5.0 V logic supplies, and since the TL431 operates as a shunt regulator, it can be used as either a positive or negative voltage reference.

Χαρακτηριστικά:

  • Programmable Output Voltage to 36 V
  • Sink Current Capability of 1.0 mA to 100 mA
  • Temperature Compensated for Operation over Full Rated Operating Temperature Range
  • Low Output Noise Voltage

Αρχεία:

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
:
Texas Instruments
Μικτό Βάρος:
0.001kg
