Αρχική Σελίδα/Ρομποτική/Οθόνες/E-Paper/e-Paper Display Module 2.7" 264x476 (Black-White-Red)

e-Paper Display Module 2.7" 264x476 (Black-White-Red)

Κωδικός:

31-00013185

Part Number: 13185

ΚατασκευαστήςWaveshare Part Number13185

Κατόπιν παραγγελίας

Διαθέσιμο σε 45-60 ημέρες

€12⁴⁰

Ποσοτικές εκπτώσεις:

Ποσότητα

10+

Τιμή

€11.16

+ −

Κάνε μια ερώτηση

Διαθεσιμότητα Καταστημάτων

Πληρωμή & Μεταφορικά

Περιγραφή
Χαρακτηριστικά

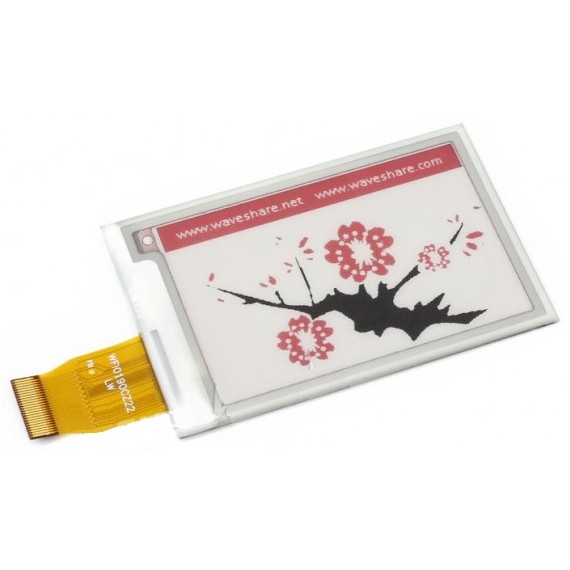

This is an E-Ink raw display, 2.7inch, 264x176 resolution, with embedded controller, communicating via SPI interface, supports red, black, and white three-color display.

Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.

Operating voltage: 3.3V
Interface: 3-wire SPI, 4-wire SPI
Display size: 57.288mm × 38.192mm
Dot pitch: 0.217 × 0.217
Resolution: 264 × 176
Display color: red, black, white
Grey level: 2
Full refresh time: 15s
Refresh power: 26.4mW(typ.)
Standby power: <0.017mW
Viewing angle: >170°

No backlight, keeps displaying last content for a long time even when power down
Ultra low power consumption, basically power is only required for refreshing
Comes with development resources and manual (driver board schematic, examples for Raspberry Pi/Arduino/STM32)
