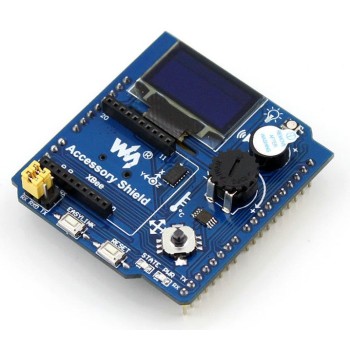

Waveshare Accessory Shield

από WAVESHARE
Accessory Shield for Arduino Development, Several Accessories IN One Board.
31-00010567
Ογκομετρικό βάρος: 0.02kg
Κατασκευαστής: WAVESHARE
Part Number: 10567
Χώρα Προέλευσης: Κίνα
Διαθέσιμο
Αποστολή σε 24 ώρες
Χαμηλό απόθεμα στο κατάστημα
19.90
Χωρίς ΦΠΑ 16.05
+
Τιμές βάση ποσότητας (Λιανική - Χονδρική):
Ποσότητα 10+
Τιμή 17.91

ΠΕΡΙΓΡΑΦΗ

Accessory Shield for Arduino Development, Several Accessories IN One Board.

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Τυπος Shield:
  • Display
  • Keypad
  • Wireless
Κατασκευαστής
:
WAVESHARE
Part Number:
10567
Μικτό Βάρος:
0.021kg
Χώρα Προέλευσης:
Κίνα

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • Joystick (5 directions)
  • Adjustable potentiometer
  • Buzzer
  • RGB LED
  • Temperature sensor
  • 3-axis digital accelerometer
  • High precision RTC
  • 0.96inch OLED
  • XBee interface

ΔΥΝΑΤΟΤΗΤΕΣ

  • Arduino standard interfaces, compatible with Arduino boards like Arduino UNO, Leonardo, NUCLEO, XNUCLEO
  • Easy to use, comes with underlying function libraries for all of the onboard accessories, just call the related function
  • Onboard XBee interface, supports connecting XBee wireless modules for remote communication

ΣΥΝΔΕΣΜΟΛΟΓΙΑ

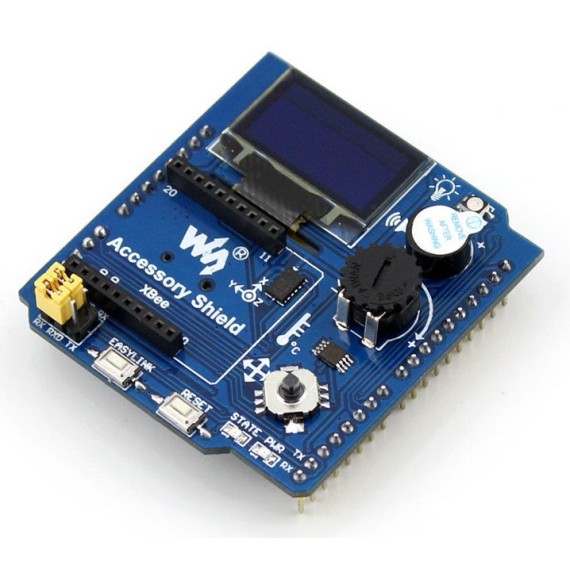

Arduino IO Expansion Shield on board resource
  1. Arduino expansion headers : for connecting with an Arduino board
  2. XBee connectors : connecting XBee wireless modules
  3. 0.96inch OLED : 128×64 resolution
  4. RGB LED : 256×256×256 colors
  5. Buzzer : controlled by PWM, capable of playing simple music
  6. 10K adjustable potentiometer
  7. ADXL345 : 3-axis digital accelerometer, measuring range up to ±16g
  8. LM75BDP : temperature sensor, resolution up to 0.125℃
  9. Joystick : 5 directions
  10. XBee module state indicator
  11. Power indicator
  12. XBee module EASYLINK button
  13. XBee module and Arduino RESET button
  14. DS3231 : high precision RTC chip
  15. CR1220 battery holder : for RTC battery
  16. P9813 : RGB LED driver
  17. Debugging/Communication selection jumper
    • when connecting TXD and TX, RXD and RX respectively, it's able to debug/config the XBee module through Arduino board serial port by using host computer software
    • when connecting TXD and RX, RXD and TX respectively, it's able to communicate with the XBee module through Arduino board serial port
