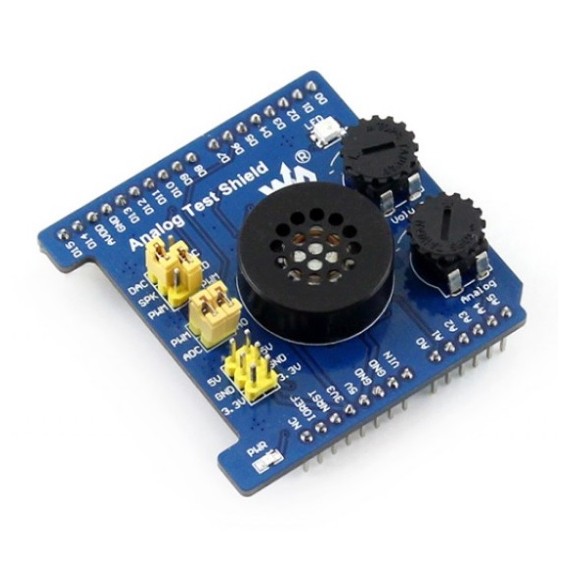

Waveshare Analog Test Shield

Analog Test Shield is an Arduino expansion board, supports analog input/output.
31-00010857
Company: Waveshare
Made in: China
In Stock
Ships in 24 Hours
No stock in retail store
10.90
Without VAT 8.79
+
WISHLIST COMPARE

DESCRIPTION

Analog Test Shield is an Arduino expansion board, supports analog input/output.

SPECIFICATIONS

Shield Type:
  • Sensor

EXTRA SPECIFICATIONS

  • Arduino standard interfaces, compatible with Arduino boards like Arduino UNO, Leonardo, NUCLEO, XNUCLEO
  • Rotate the potentiometer to adjust analog input signal
  • Onboard 12bit DAC MCP4725, outputs required wave form
  • Demonstrate the DAC/PWM effects via LED and speaker
