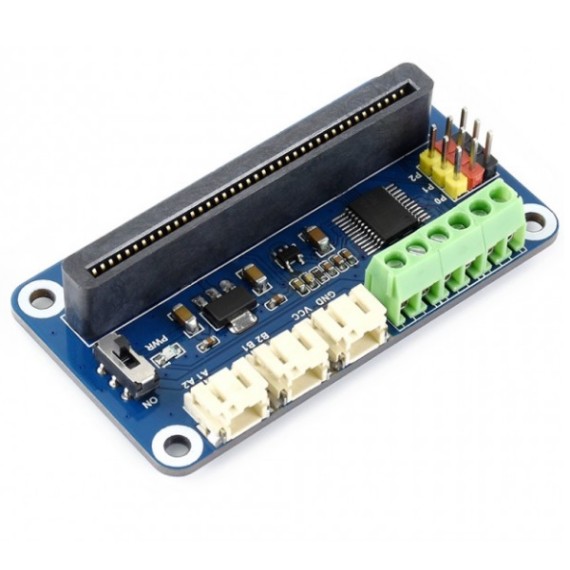

Waveshare Driver Breakout for micro:bit

This driver board gives your micro:bit the ability to drive two channel DC motors and three channel servos. It's an ideal choice for you to DIY mobile robots.
31-00015220
Gross Weight: 0.02kg
Company: Waveshare
Part Number: 15220
Made in: China
In Stock
Ships in 24 Hours
No stock in retail store
14.90
Without VAT 12.02
+
WISHLIST COMPARE

DESCRIPTION

This driver board gives your micro:bit the ability to drive two channel DC motors and three channel servos. It's an ideal choice for you to DIY mobile robots.

SPECIFICATIONS

Micro:bit Compatible:
  • V1
  • V2

NOTES

  • The micro:bit in the photos is NOT included.

SPECIFICATIONS

  • Power supply: 6V~12V (VIN terminal)
  • Servo voltage: 5V
  • Logic voltage: 3.3V
  • Driver: TB6612FNG
  • Dimension: 65mm x 36mm
  • Mounting hole size: 3.0mm

FEATURES

  • micro:bit edge connector, directly pluggable
  • 2x DC motor interfaces, 3x servo interfaces
  • Integrates 5V regulator, up to 3A output current, can be powered from battery through VIN terminal
  • Onboard multi connector options for DC motors in different specifications, onboard standard servo headers
  • Comes with development resources and manual (micro:bit graphical examples)

Διαστάσεις

Το κιτ περιέχει

  1. Motor Driver for micro:bit x1
