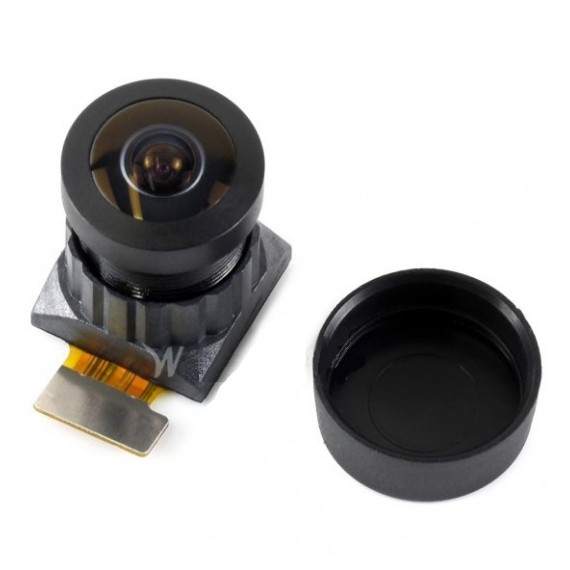

Waveshare IMX219 Camera Module, 160 degree FoV

This is a camera module (without driver PCB) compatible with the official   Raspberry Pi Camera Board V2 , with 8-megapixel IMX219 sensor and features 160...
31-00015264
Gross Weight: 0.01kg
Company: Waveshare
Part Number: 15264
Made in: China
Πληροφορίες: Camera
In Stock
Ships in 24 Hours
Low stock in store
16.20
Without VAT 13.06
+
WISHLIST COMPARE

DESCRIPTION

This is a camera module (without driver PCB) compatible with the official Raspberry Pi Camera Board V2, with 8-megapixel IMX219 sensor and features 160 degree field of view.

If you got a Raspberry Pi Camera Board V2 and just want to try something new, here it is.



NOTES

SPECIFICATIONS

Resolution:
8MP
Adjustable-focus:
No
Infrared Night Vision:
No
Angle of View :
160°
Sensor Type:
  • Camera
Interface:
  • Digital

EXTRA SPECIFICATIONS

  • Sony IMX219 8-megapixel sensor
  • Camera specifications
    • CMOS size: 1/4inch
    • Aperture (F): 2.35
    • Focal Length: 3.15mm
    • Field of View: 160 degree (while the original V2 camera is only 62.2 degree)
    • Distortion: < 14.3%
    • Focusing Range: 20cm ~ infinity
  • 3280 x2464 still picture resolution
  • Support 1080p30, 720p60 and 640x480p90 video record

DOCUMENTS

Selection Guide

Camera Module Pixels Sensor Infrared Field of View (degree) Aperture (F) Focal Length (mm)
RPi Camera V2 original camera module 8 Mega IMX219 × 62.2 2.0 3.04
RPi NoIR Camera V2 original camera module 8 Mega IMX219 62.2 2.0 3.04
IMX219-D160 8 Mega IMX219 × 160 2.35 3.15
IMX219-D77 8 Mega IMX219 × 77.6 2.0 2.96

Note: Thanks to the interface compatibility, camera modules listed above are interchangeable according to your needs.
