Need more flash storage than the Raspberry Pi Pico offers? Tired of the outdated Micro USB connector? The RP2040-Plus solves these issues and more.

Like the Raspberry Pi Pico, it is built around the RP2040 microcontroller, featuring a dual-core Arm Cortex-M0+ processor running at up to 133 MHz and 26 multi-function GPIO pins. What sets it apart is the onboard 16MB flash memory, a modern USB-C connector, a battery recharge header, and a high-current DC-DC converter—offering enhanced performance and convenience for your projects.

Available options

Key features

RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
264kB of SRAM, and 16MB of on-board Flash memory
USB-C connector, keeps it up to date, easier to use
Lithium battery recharge/discharge header, suitable for mobile devices
Onboard DC-DC chip MP28164, high efficiency DC-DC buck-boost chip, maximum 2A load current
Castellated module allows soldering direct to carrier boards
USB 1.1 with device and host support
Low-power sleep and dormant modes
Drag-and-drop programming using mass storage over USB
26× multi-function GPIO pins
2× SPI, 2× I2C, 2× UART, 3× 12-bit ADC, 16× controllable PWM channels
Accurate clock and timer on-chip
Temperature sensor
Accelerated floating-point libraries on-chip
8× Programmable I/O (PIO) state machines for custom peripheral support

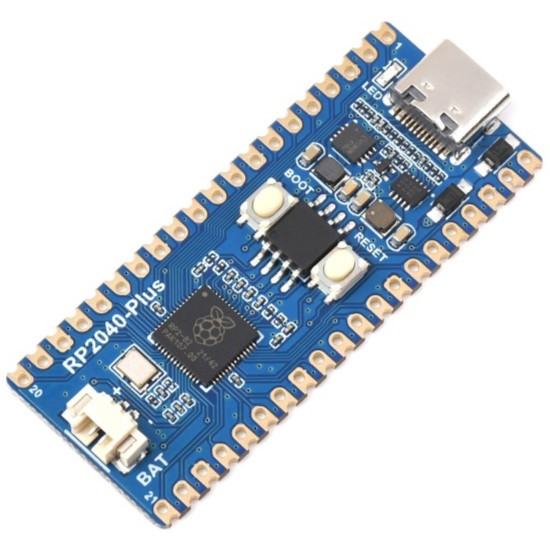

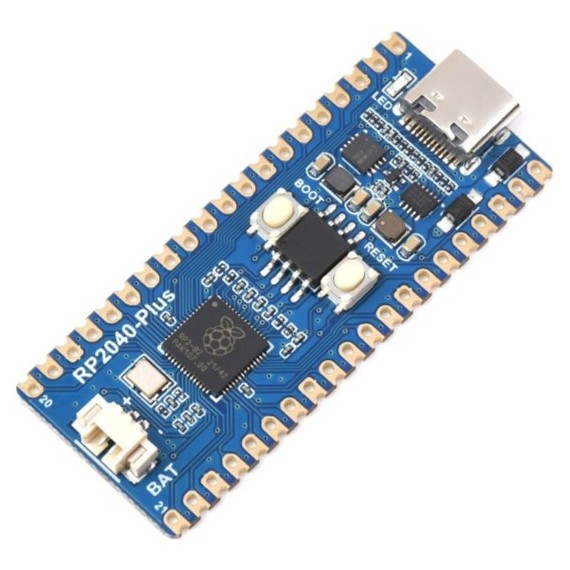

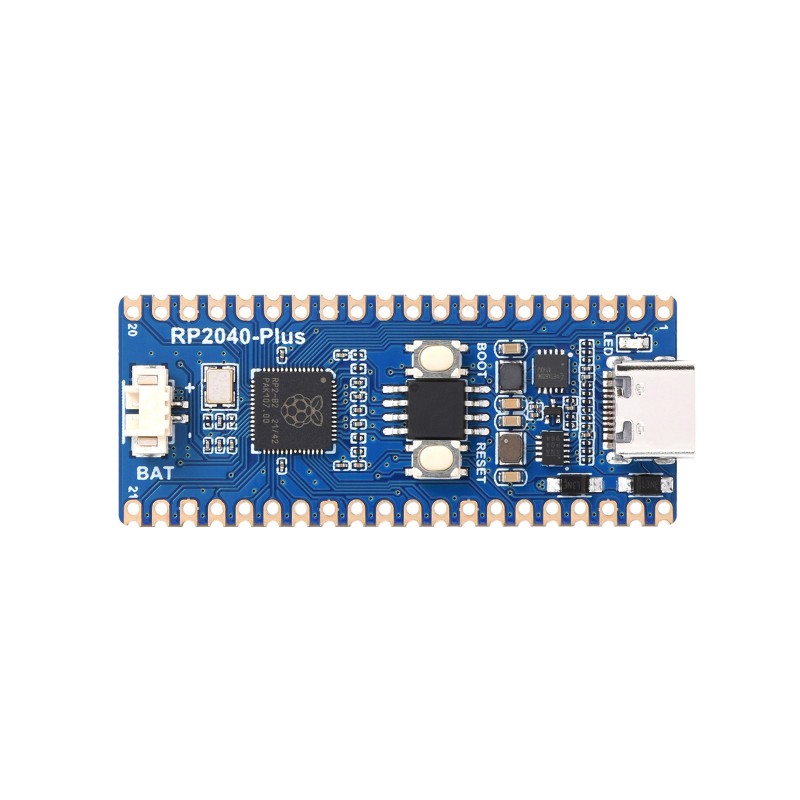

Hardware layout

LED
user LED (not power indicator)
USB Type-C connector
ETA6096
high efficiency Lithium battery recharge manager
MP28164
high efficiency DC-DC buck-boost chip
BOOT button
press it when resetting to enter download mode
On-board flash memory
16MB: W25Q128JVSIQ
RESET button
RP2040
dual-core processor, up to 133MHz operating frequency
Battery header
MX1.25 header, for 3.7V Lithium battery, allows recharging the battery and powering the board at the same time

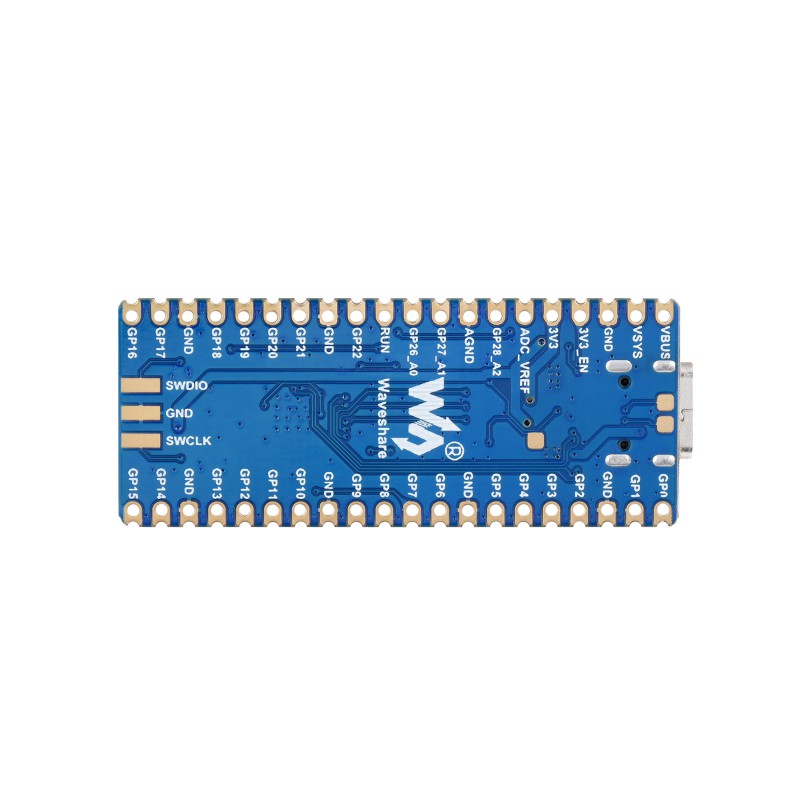

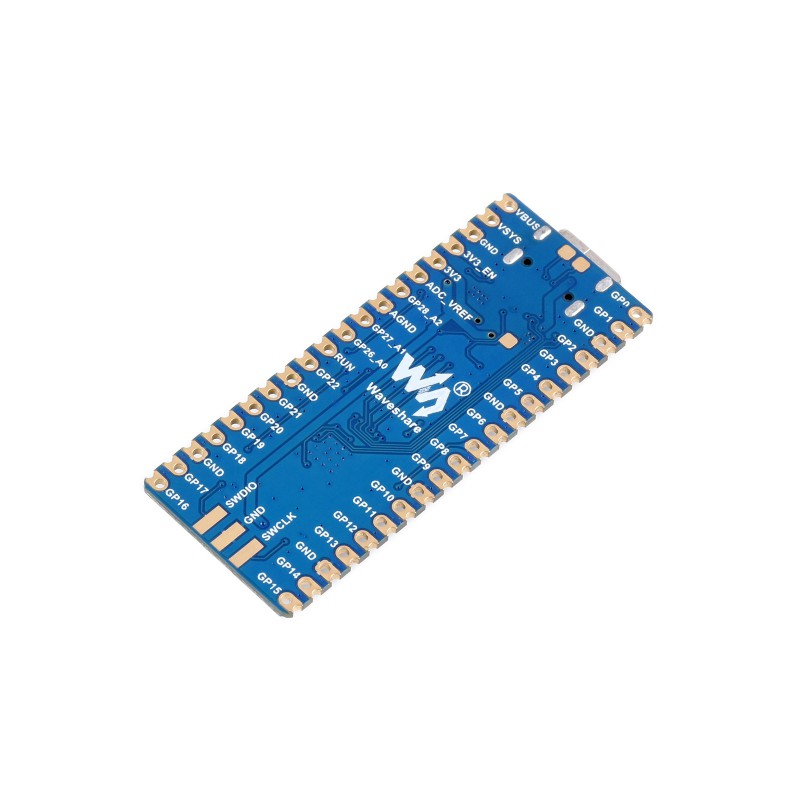

Pinout
compatible with Raspberry Pi Pico
USB test points
connecting to USB interface
BOOT test point
connecting to BOOT button
DEBUG points
