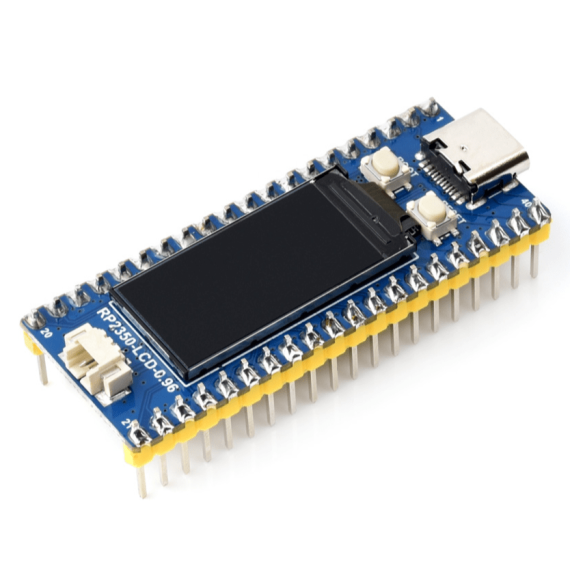

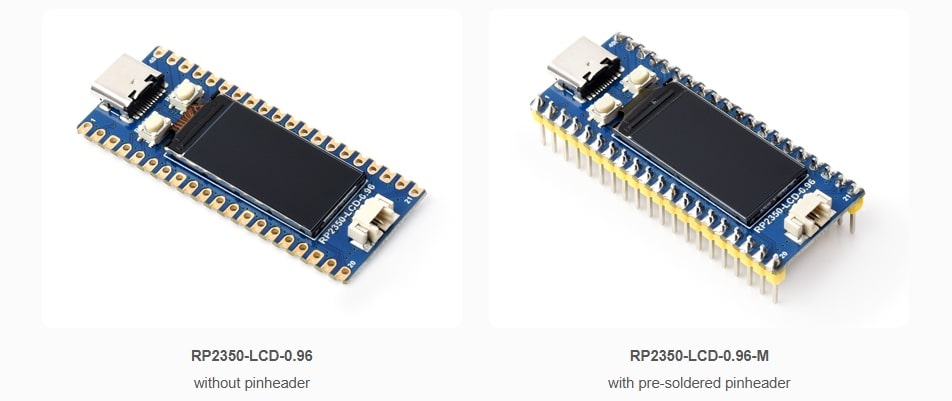

Waveshare RP2350 LCD 0.96" - With Headers

Κωδικός:

31-00029438

Part Number: RP2350-LCD-0.96-M

ΚατασκευαστήςWaveshare Part NumberRP2350-LCD-0.96-M

Διαθέσιμο

Αποστολή σε 24 ώρες

€13⁶⁰

Ποσοτικές εκπτώσεις:

Ποσότητα

10+

Τιμή

€12.24

+ −

Κάνε μια ερώτηση

Διαθεσιμότητα Καταστημάτων

Πληρωμή & Μεταφορικά

Περιγραφή
Χαρακτηριστικά

This is a low-cost, high-performance Pico-like MCU board with flexible digital interfaces. It incorporates Raspberry Pi's RP2350A microcontroller chip, the same as the one on Raspberry Pi Pico 2. For software development, either Raspberry Pi's C/C++ SDK, or the MicroPython is available, which makes it easy for you to get started, and integrate it into end products quickly.

In addition, there's also an onboard 0.96inch IPS display, Lithium battery recharge/discharge header, and high efficiency DC-DC buck-boost chip.

Key features

RP2350A microcontroller chip designed by Raspberry Pi in the United Kingdom
Adopts unique dual-core and dual-architecture design: dual-core Arm Cortex-M33 processor and dual-core Hazard 3 RISC-V processor, flexible clock running up to 150 MHz
520KB of SRAM, and 4MB of on-board Flash memory
USB-C connector, keeps it up to date, easier to use
0.96inch 160×80 pixels 65K colorful IPS LCD display
Lithium battery recharge/discharge header, suitable for mobile devices
Onboard DC-DC chip MP28164, high efficiency DC-DC buck-boost chip, maximum 2A load current
Castellated module allows soldering directly to carrier boards
USB 1.1 with device and host support
Low-power sleep and dormant modes
Drag-and-drop programming using mass storage over USB
26 × multi-function GPIO pins
2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, 16 × controllable PWM channels
Accurate clock and timer on-chip
Temperature sensor
Accelerated floating-point libraries on-chip
12 × Programmable I/O (PIO) state machines for custom peripheral support

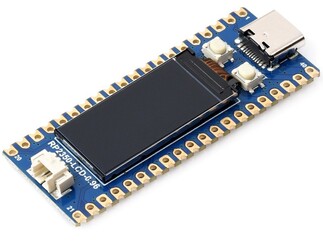

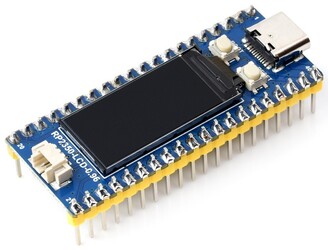

What's on board

USB Type-C connector, for program downloading, supports USB1.1 hosts and slave devices
BOOT button
RESET button
0.96inch IPS LCD display, 160 × 80 pixels, 65K colorful
Battery MX1.25 header, for 3.7V Lithium battery, allows recharging the battery and powering the board at the same time
MP28164, high efficiency DC-DC buck-boost chip
ETA6096, high efficiency Lithium battery recharge manager
RP2350A, dual-core and dual-architecture design, up to 150 MHz operating frequency
P25Q32SH-UXH-IR, 4MB NOR-Flash
DEBUG points
Pinout compatible with Raspberry Pi Pico 2
