Waveshare RP2350 Plus 16MB - With Headers

31-00029414
RP2350-Plus-16MB-M
ΚατασκευαστήςWaveshare Part NumberRP2350-Plus-16MB-M
Διαθέσιμο
Αποστολή σε 24 ώρες
990
Ποσοτικές εκπτώσεις:
Ποσότητα
10+
Τιμή
8.91
Gropbotronics Store Availability
Διαθεσιμότητα Καταστημάτων
Πληρωμή & Μεταφορικά

This product is developed based on the RP2350 chip and is an enhanced version of the Raspberry Pi Pico 2. It is fully compatible with most Raspberry Pi Pico 2 modules, with additional features and improvements.

Board specifications

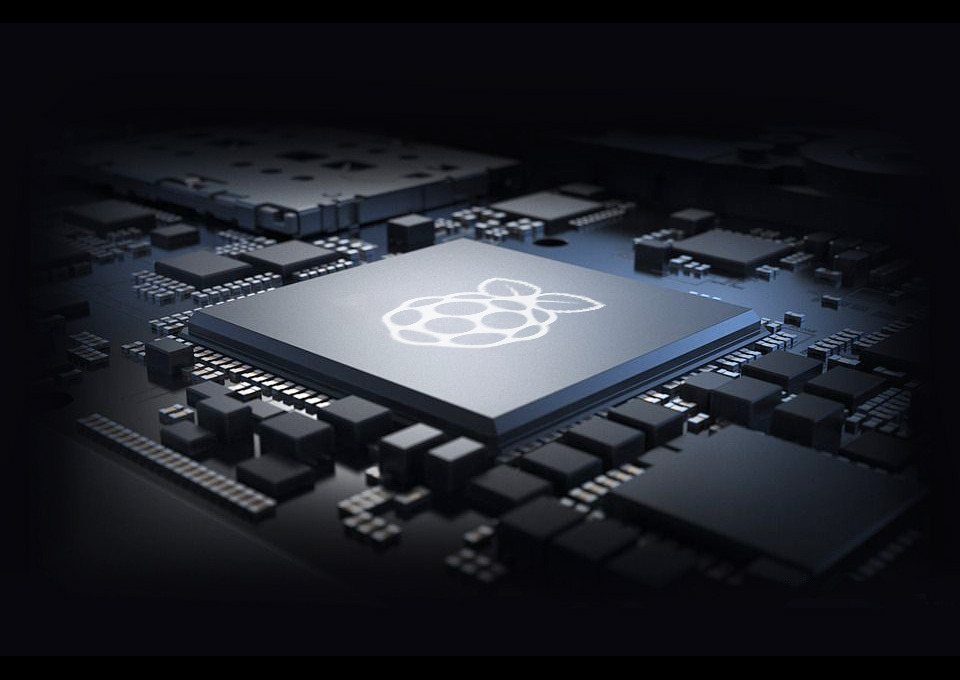

  • RP2350A microcontroller chip designed by Raspberry Pi in the United Kingdom
  • Adopts unique dual-core and dual-architecture design: dual-core Arm Cortex-M33 processor and dual-core Hazard 3 RISC-V processor, flexible clock running up to 150 MHz
  • 520KB of SRAM, 16MB on-board Flash memory
  • Type-C connector, keeps it up to date, easier to use
  • Lithium battery recharge/discharge header, suitable for mobile devices
  • Onboard DC-DC chip MP28164, high efficiency DC-DC buck-boost chip, maximum 2A load current
  • Castellated module allows soldering directly to carrier boards
  • USB 1.1 with device and host support
  • Low-power sleep and dormant modes
  • Drag-and-drop programming using mass storage over USB
  • 26 × multi-function GPIO pins
  • 2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, 16 × controllable PWM channels
  • Accurate clock and timer on-chip
  • Temperature sensor
  • Accelerated floating-point libraries on-chip
  • 12 × Programmable I/O (PIO) state machines for custom peripheral support



What's on board
  1. LED, user LED (not power indicator)
  2. USB Type-C connector
  3. ETA6096 high efficiency Lithium battery recharge manager
  4. MP28164 high efficiency DC-DC buck-boost chip
  5. BOOT button, press it when resetting to enter download mode
  6. On-board flash memory, 16MB: W25Q128JVSIQ
  7. RESET button
  8. RP2350A, dual-core and dual-architecture design, up to 150 MHz operating frequency
  9. Battery MX1.25 header, for 3.7V Lithium battery, allows recharging the battery and powering the board at the same time
  10. Pinout, compatible with Raspberry Pi Pico 2
  11. USB test points, connecting to USB interface
  12. BOOT test point, connecting to BOOT button
  13. DEBUG points
