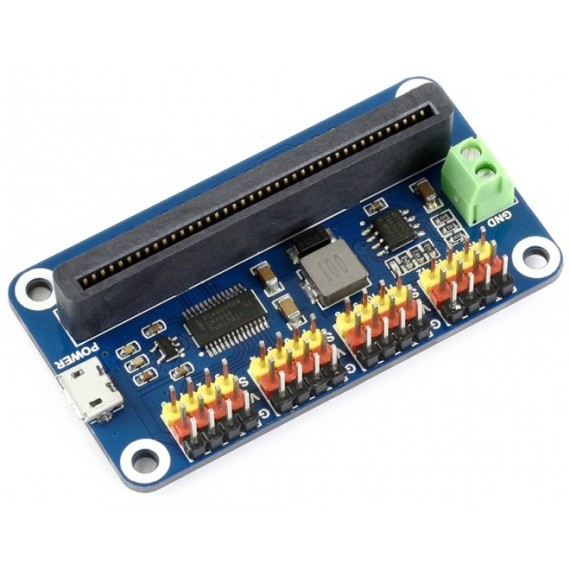

Waveshare Servo Driver for micro:bit

Waveshare, 15072
31-00015072
Did you encounter the PWM output limit of micro:bit when trying to make a robotic arm or whatever robot which requires lots of servo? We quite understand...
12.90
Available
for online order
+
Add to wish list
Διαθεσιμότητα Καταστήματος Αθήνας
Out of stock
available only for online order
Did you encounter the PWM output limit of micro:bit when trying to make a robotic arm or whatever robot which requires lots of servo? We quite understand that situation, even we got an excellent solution. This handy servo driver breakout would be your ideal choice.
Company:
Waveshare
MPN:
15072
Made in:
China
  • The micro:bit in the photos is NOT included.
  • Power supply: 5V (POWER connector) OR 6V~12V (VIN terminal)
  • Servo voltage: 5V
  • Logic voltage: 3.3V
  • Driver: PCA9685
  • Control interface: I2C

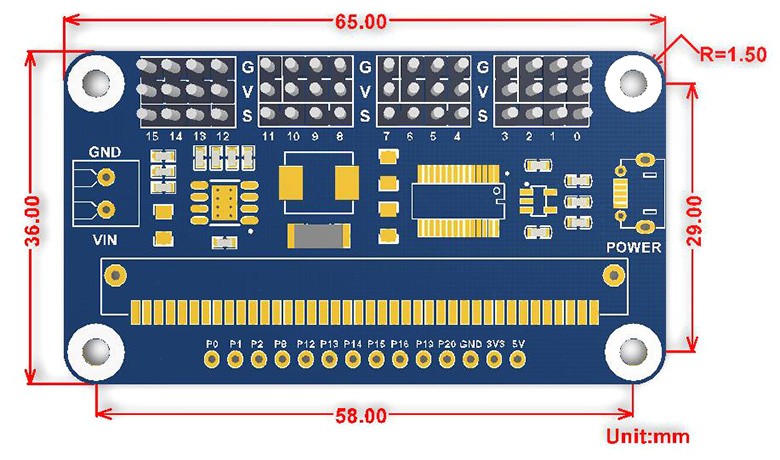

  • Dimension: 65mm x 36mm
  • Mounting hole size: 3.0mm
  • micro:bit edge connector, directly pluggable
  • I2C controlled, using only 2 pins
  • Up to 16-Channel servo/PWM outputs, 12-bit resolution for each channel (4096 scales)
  • Integrates 5V regulator, up to 3A output current, can be powered from battery through VIN terminal

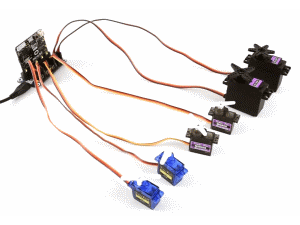

  • Standard servo interface, supports common used servo such as SG90, MG90S, MG996R, etc.
  • Reserved I2C control pins, allows to work with other control boards
  • Comes with development resources and manual (micro:bit graphical examples like Bluetooth/2.4G wir eless remote control)
  1. Servo Driver for micro:bit x1
