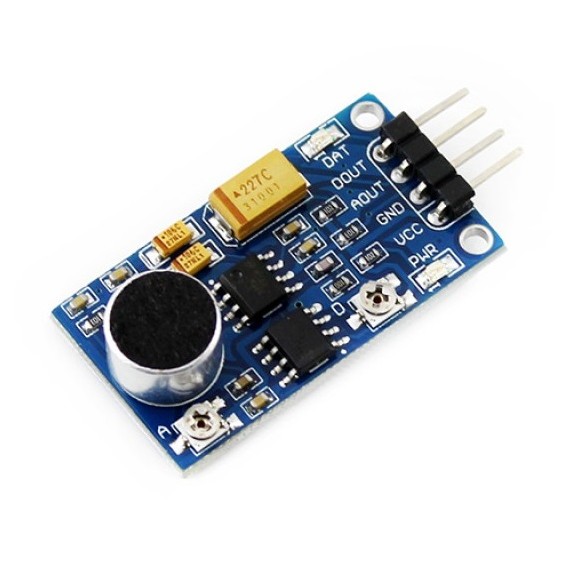

Waveshare Sound Sensor

Onboard audio power amplifier LM386 Audio signal gain up to 200 Adjustable accuracy Signal output indicator
31-00009534
Gross Weight: 0.01kg
Company: Waveshare
Part Number: 9534
Made in: China
Out of Stock
Product out of stock
Low stock in store
4.20
Without VAT 3.39

We (GRobotronics) will add your email address to a special mailing list for this product. Once the product is in stock, you’ll get an email about it automatically, and your email address will be removed from the product’s mailing list.

The data will be visible to some members of our staff. If you’d like to have your personal data removed, send an email to dpo@grobotronics.com.

If you believe that your personal data has been misused, you have the right to lodge a complaint with a supervisory authority. We’re obliged by EU General Data Protection Regulation to let you know about this right; we don’t actually intend to misuse your data.

Add to Cart
WISHLIST COMPARE

DESCRIPTION

  • Onboard audio power amplifier LM386
  • Audio signal gain up to 200
  • Adjustable accuracy
  • Signal output indicator

SPECIFICATIONS

Sensor Type:
  • Sound
Typical Input Voltage:
  • 3.3VDC
  • 5VDC
Interface:
  • Analog
  • Digital
Communication Protocol:
  • Without

SPECIFICATIONS

  • Mic sensitivity : 52dB
  • Frequency range : 50Hz ~ 20KHz
  • Power: 3.3V ~ 5.3V
  • Mounting holes size: 2.0mm

FEATURES

  • Audio amplifier
  • Ambient sound detection
  • Sound level detection (unable to get exact dB value)

Διαστάσεις

Συνδεσμολογία

In the case of working with a MCU:

  • VCC ↔ 3.3V ~ 5.3V
  • GND ↔ power supply ground
  • AOUT ↔ MCU.IO (analog output)
  • DOUT ↔ MCU.IO (digital output)
