Hobby Motor - Gear

από OEM

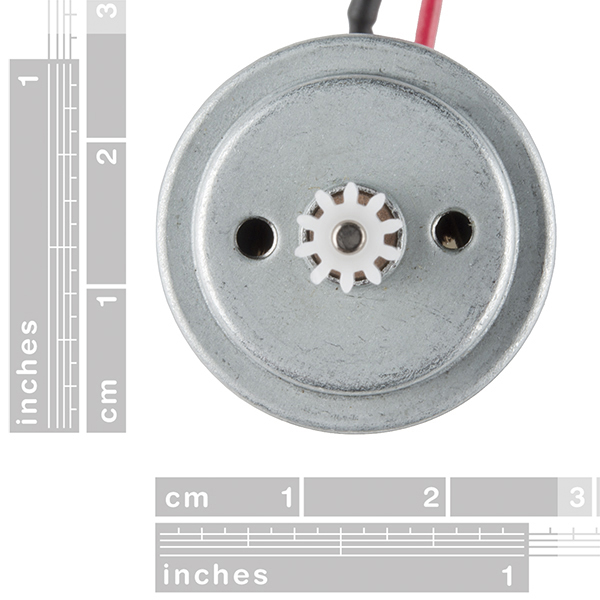

This is our new Hobby Motor now with a 6mm, 10 tooth, gear to make your basic projects a little simpler to manage.

03-00011696
Ογκομετρικό βάρος: 0.03kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: OEM
Part Number: ROB-11696
Χώρα Προέλευσης: Κίνα
Διαθέσιμο
Αποστολή σε 24 ώρες
Χωρίς απόθεμα στο φυσικό κατάστημα
2.80
Χωρίς ΦΠΑ 2.26
+

ΠΕΡΙΓΡΑΦΗ

This is our new Hobby Motor now with a 6mm, 10 tooth, gear to make your basic projects a little simpler to manage. It works well for basic things like making a fan or spinning something pretty fast without much resistance.

The motor has an operating voltage range of 1.0 to 3.0V DC and a no load speed of 6600±10% RPM (@1.0V DC, 110mA).

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
:
OEM
Part Number:
ROB-11696
Μικτό Βάρος:
0.0278kg
Χώρα Προέλευσης:
Κίνα
Διάμετρος Κινητήρα:
27mm
Voltage (Range):
1 - 3Volt
Current (Stall):
800mA
Ταχύτητα:
6600RPM
Gearmotor Style:
Hobby
Encoder:
Όχι

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • Rated Voltage: 3.0V DC
  • Voltage: 1.0 - 3.0V DC
  • Rotation: Clockwise from the motor shaft
  • No load current: 110mA max
  • No load speed: 6600±10%rpm
  • No load start voltage: 1.0V max
  • Locked-rotor current: 0.8A
