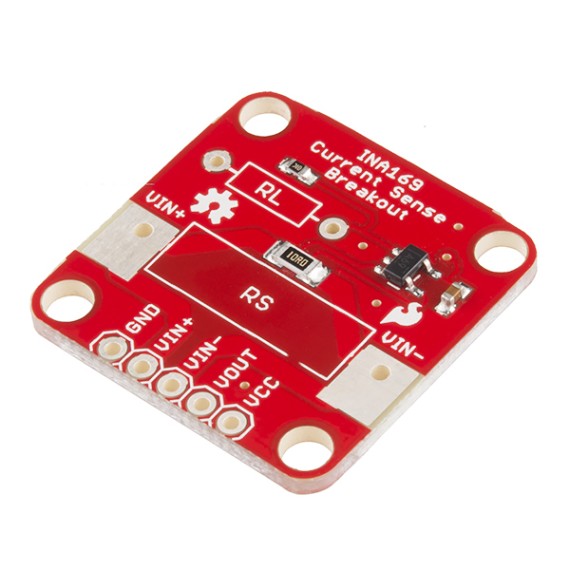

SparkFun Αισθητήρας Ρεύματος - INA169

The INA169 is a “high-side current monitor,” which means that you place a resistor (a “shunt resistor”) on the positive power rail and the INA169 measures the voltage drop across that resistor.

03-00012040
Ογκομετρικό βάρος: 0kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: SparkFun Electronics
Part Number: SEN-12040
Χώρα Προέλευσης: ΗΠΑ
Διαθέσιμο
Αποστολή σε 24 ώρες
Χωρίς απόθεμα στο φυσικό κατάστημα
15.20
Χωρίς ΦΠΑ 12.26
+
Τιμές βάση ποσότητας (Λιανική - Χονδρική):
Ποσότητα 10+
Τιμή 14.44

ΠΕΡΙΓΡΑΦΗ

The INA169 is a “high-side current monitor,” which means that you place a resistor (a “shunt resistor”) on the positive power rail and the INA169 measures the voltage drop across that resistor. The INA169 outputs a small current based on the measured voltage drop. If you place a resistor from the output of the INA169 to ground, you can measure the voltage at the output.

Input common-mode and power supply voltages are independent and can range from 2.7V to 60V on the INA169 and quiescent (sleep) current is only 60uA.

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
:
SparkFun Electronics
Part Number:
SEN-12040
Μικτό Βάρος:
0.001kg
Χώρα Προέλευσης:
ΗΠΑ
Τύπος Αισθητήρα:
  • Ρεύματος
Διασύνδεση:
  • Αναλογική
Πρωτόκολλο Eπικοινωνίας:
  • Χωρίς
