Αισθητήρας Ρεύματος Non-Invasive - 30Α

Κωδικός:

19-00012547

ΚατασκευαστήςOem

Διαθέσιμο

Αποστολή σε 24 ώρες

€9⁹⁰

Ποσοτικές εκπτώσεις:

Ποσότητα

10+

Τιμή

€7.92

+ −

Κάνε μια ερώτηση

Διαθεσιμότητα Καταστημάτων

Πληρωμή & Μεταφορικά

Περιγραφή
Χαρακτηριστικά

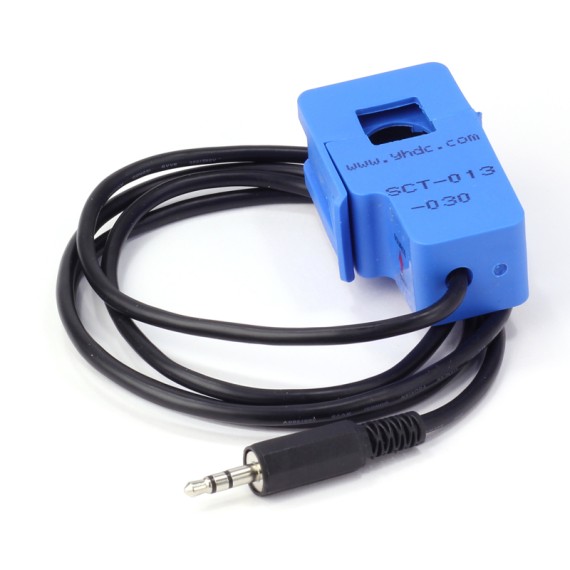

This non-invasive current sensor clamped around the supply line can measure a load up to 30 Amps, and allow you to calculate how much current pass through it. It can be useful for building your own energy monitor or for building an over-current protection device for an AC load.

Current transformers (CTs) are sensors that are used for measuring alternating current. They are particularly useful for measuring whole building electricity consumption (or generation for that matter). The split core type such as the CT in the picture above, is particularly suitable for DIY use it can be clipped straight on to either the live or neutral wire coming into the building without having to do any high voltage electrical work.

Input Current: 0~30A AC
Output Mode: 0~1V
Non-linearity: ±1%
Build-in sampling resistance（RL): 62Ω
Turn Ratio: 1800:1
