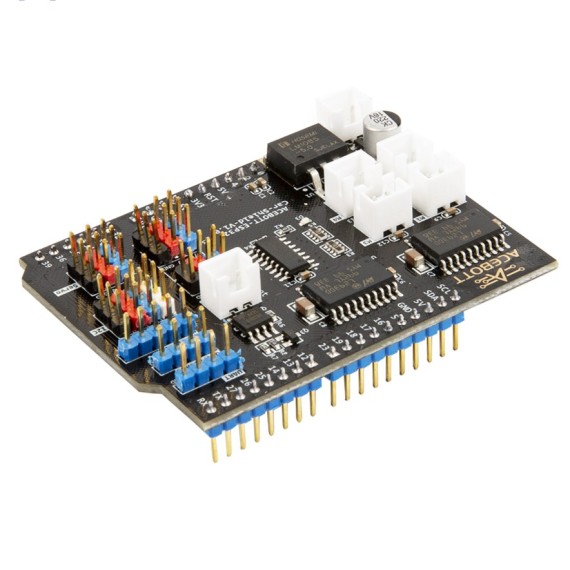

Acebott Motor Shield L293D

69-00012412
QA052
Acebott Motor Shield L293D

Διαθέσιμο
Αποστολή σε 24 ώρες
1240
Gropbotronics Store Availability
Διαθεσιμότητα Καταστημάτων
Πληρωμή & Μεταφορικά

This expansion board is designed for the Acebott ESP32 Max controller board, primarily used in building robots and smart cars. It features a standardized connection method that simplifies hardware integration. Most importantly, it includes a motor drive function, enhancing both development efficiency and project flexibility. This allows developers to focus more on core functionalities and innovation.

Technical data
  • 3× 3-Pin digital pins
  • 2× 3-Pin analog pins
  • 2× Rows of pin interfaces for ESP32 Max
  • 5× DC motor interfaces
  • 3× I2C pins
  • 3× Servo interfaces
  • 1× Serial port
  • 1× Ultrasonic interface
  • 1× Three-way line-tracking sensor interface
  • 1× Power interface (Max input voltage 15V - Max output current 3A)
  • Operating temperature: 0~70℃
  • Weight: 22g
Resources

Acebott documentation


Κατασκευαστής
Acebott
Part Number
QA052
Καθ. Βάρος
0.04kg
