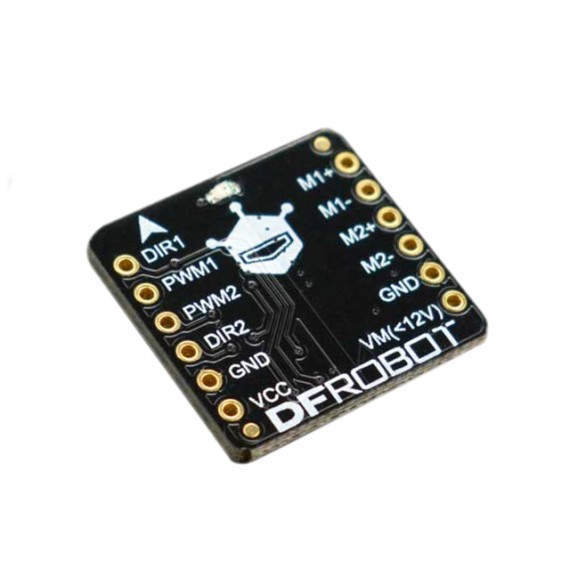

Fermion TB6612FNG 2x1.2A DC Motor Driver

από DFROBOT
This DFRobot micro dual way DC motor driver is design based on TB6612FNG motor driver IC. It inherits DFRobot L298N motor control logic, which only need...
25-00016302
Ογκομετρικό βάρος: 0.01kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: DFROBOT
Part Number: DRI0044
Χώρα Προέλευσης: Κίνα
Διαθέσιμο
Αποστολή σε 24 ώρες
Χαμηλό απόθεμα στο κατάστημα
5.60
Χωρίς ΦΠΑ 4.52
+

ΠΕΡΙΓΡΑΦΗ

This DFRobot micro dual way DC motor driver is design based on TB6612FNG motor driver IC. It inherits DFRobot L298N motor control logic, which only need four pins to drive 2 motors. Compared with the IC Breakout, it saves two precious GPIO resource, especially in Arduino UNO board.

TB612FNG is a dual-channel full-bridge drive chip. The maximum continuous drive current of single channel can reach 1.2A, peak value 2A/3.2A (continuous pulse / single pulse) , which can drive some micro DC motors. The control logic is similar to L298n, and the code can be directly compatible with the DFROBOT L298N motor driver. Standard XH2.54 pin can be inserted directly into the breadboard. It is a good choice for DIY project or product developments.

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
:
DFROBOT
Part Number:
DRI0044
Μικτό Βάρος:
0.01kg
Χώρα Προέλευσης:
Κίνα
Max. Current per Channel:
1.2A
Τύπος Οδηγού:
  • DC Motor

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • VCC Operating Voltage: 2.7V~5.5V
  • VM Input Power: 2.5V~12V
  • Driver Channel: 2 channel
  • Output Current: 1.2A (single-channel continuous drive current)
  • Start / Peak Current:
    • 2A (continuous pulse)
    • 3.2A (single pulse)
  • Dimension: 20x19.50mm
