Fermion HR8833 Thumbnail Sized DC Motor Driver 2x1.5A

από DFROBOT
This is a ultra compact size Dual-H-Bridge dc motor driver (Based on HR8833), which could drive two way 1.5A DC brush motors up to 10V. It has the same...
25-00016299
Ογκομετρικό βάρος: 0.01kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: DFROBOT
Part Number: DRI0040
Χώρα Προέλευσης: Κίνα
Διαθέσιμο
Αποστολή σε 24 ώρες
Χαμηλό απόθεμα στο κατάστημα
5.60
Χωρίς ΦΠΑ 4.52
+

ΠΕΡΙΓΡΑΦΗ

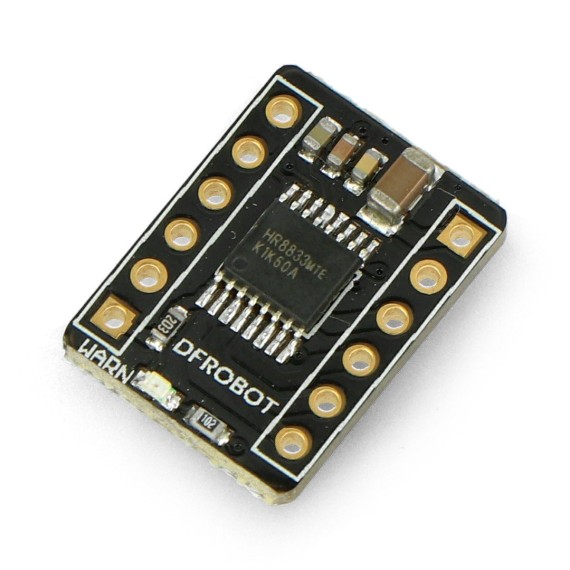

This is a ultra compact size Dual-H-Bridge dc motor driver (Based on HR8833), which could drive two way 1.5A DC brush motors up to 10V. It has the same footprint as your thumbnail suitable for projects with limited spaces.

Both sides of the module are desgined with standard XH2.54 pins, which allows you to plug it on a breadboard or prototype board.

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
:
DFROBOT
Part Number:
DRI0040
Μικτό Βάρος:
0.01kg
Χώρα Προέλευσης:
Κίνα
Max. Current per Channel:
1.5A
Τύπος Οδηγού:
  • DC Motor

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • Logic Input Voltage (VCC): 3.3-5V
  • Load Supply Voltage (VM): 3.3-10V
  • Maximum Continuous Operating Current: 1500mA( Single)
  • Support PWM speed control mode
  • Maximum power dissipation: 25W (T = 75 degree Celsius)
  • Working temperature:-20~85℃
  • Module Size: 18x13mm
