DFRobot Pi Display 5" 800x480, DSI interface, Capacitive Touchscreen

by DFROBOT
This is a 5" Raspberry Pi LCD touchscreen with 800x480 resolution and 108x64.8mm display area. The product supports Raspberry Pi DSI display interface and...
25-00016120
Company: DFROBOT
Part Number: DFR0550
Made in: China
In Stock
Ships in 24 Hours
No stock in retail store
54.90
Without VAT 44.27
+
WISHLIST COMPARE

DESCRIPTION

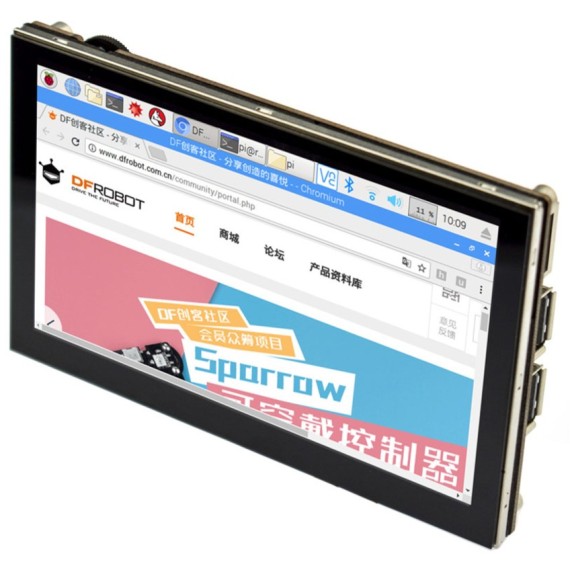

This is a 5" Raspberry Pi LCD touchscreen with 800x480 resolution and 108x64.8mm display area. The product supports Raspberry Pi DSI display interface and comes with a capacitive touch panel on its screen and supports 5 touch points.

The special holes design on the back of the screen is convenient to directly install the Raspberry Pi in the product. There is no need to provide external power for the touchscreen as the Raspberry Pi power supply is adopted. In addition, the screen supports hardware backlight adjustment. The function can be realized by turning the potentiometer on the back of the display.

THE PACKAGE INCLUDES

  • 1x 5'' TFT-Display with Touchscreen(V1.0)
  • 1x FFC cable 45mm pitch 1.0mm-15pin
  • 8x M2.5 x8 Standoffs
  • 8x M2.5 x6 DK4.9 Machine Screws

NOTES

SPECIFICATIONS

Type:
LCD/TFT
Display Size:
5"
Resolution:
800x480
Aspect Ration:
  • 16:10
Display Color:
Colorful
Touchscreen:
Capacitive
Interface:
  • DSI
Raspberry Compatible:
  • Model 4 B
  • Model 3 B+
  • Model 3 B

SPECIFICATIONS

  • Operating Voltage: 3.3V (Supplied by Raspberry Pi display interface)
  • The Maximum Operating Current: 320mA
  • Screen-off Current: 100mA
  • Resolution: 800x480
  • Video Interface: Raspberry Pi DSI
  • Number of Touch Points: 5
  • Viewing Angle: 60°/70°/70°/70°
  • RGB888-16 Mega True Color
  • Refresh Frequency: 60Hz
  • Luminous Efficiency: 280 cd/m2
  • Operating Temperature: -20℃ - 70℃
  • Dimension: 121x76mm
  • Mounting Hole Size: M2.5
  • Outside Mounting Hole Position: 113x68mm
  • Inside Mounting Hole Position: 58x49mm

FEATURES

  • Capacitive Touchscreen, Support 5 TouchPoints.
  • Raspberry DSI Direct Driver
