Display e-Paper 1.54" 200x200 (Black-White-Red)

Κωδικός:

31-00013338

Part Number: 13338

ΚατασκευαστήςWaveshare Part Number13338

Διαθέσιμο

Αποστολή σε 24 ώρες

€19⁹⁰

Ποσοτικές εκπτώσεις:

Ποσότητα

10+

Τιμή

€17.91

+ −

Κάνε μια ερώτηση

Διαθεσιμότητα Καταστημάτων

Πληρωμή & Μεταφορικά

Περιγραφή
Χαρακτηριστικά

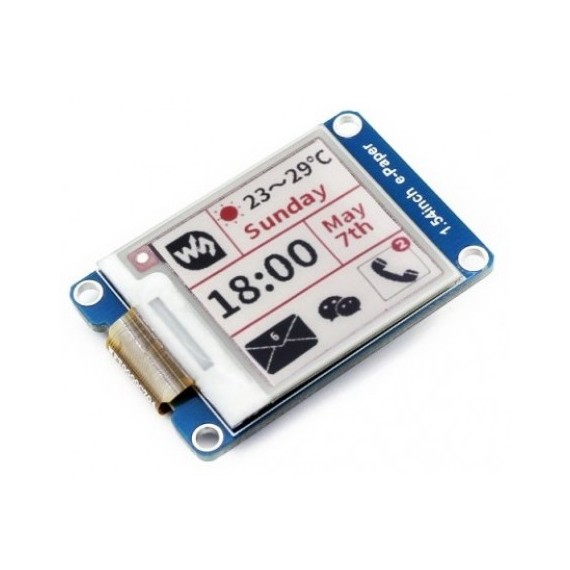

This is an E-Ink display module, 1.54inch, 200x200 resolution, with embedded controller, communicating via SPI interface, supports red, black, and white three-color display.

Due to the advantages like ultra low power consumption, wide viewing angle, great effect under sunlight, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.

Operating voltage: 3.3V / 5V
Interface: 3-wire SPI, 4-wire SPI
Outline dimension: 48mm × 33mm
Display size: 27.6mm × 27.6mm
Dot pitch: 0.138 × 0.138
Resolution: 200 × 200
Display color: red, black, white
Grey level: 2
Full refresh time: 8s
Refresh power: 26.4mW(typ.)
Standby power: <0.017mW
Viewing angle: >170°

No backlight, keeps displaying last content for a long time even when power down
Ultra low power consumption, basically power is only required for refreshing
SPI interface, for connecting with controller boards like Raspberry Pi/Nucleo, etc.
Onboard voltage translator, compatible with 3.3V/5V MCUs
Comes with development resources and manual (examples for Raspberry Pi/STM32)
