e-Paper Segment Module 1.9" 91 Segments

31-00022689
1.9inch Segment e-Paper Module
CompanyWaveshare Part Number1.9inch Segment e-Paper Module
In Stock
Ships in 24 Hours
1620
Our quantity discounts:
Quantity
10+
Price
14.58
Gropbotronics Store Availability
Availability in Retail Store
Payments & Shipping

1.9″ Segment E-Paper Module
Support Partial Refresh, Low Power, Wide Viewing Angle, Paper-Like Displaying Without Electricity

Ideal for Temperature and Humidity meter, Humidifier, Digital Meter...

Advantages Of eINK

E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.

E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.

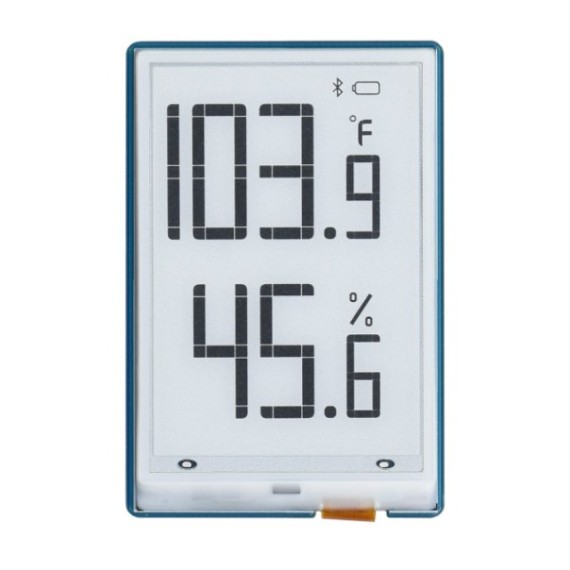

91 Segments Full Display

Onboard I2C Control Interface
For Use With Controller Boards Like Raspberry Pi/STM32/Arduino

VCC Power (3.3V / 5V input)
GND Ground
SDA I2C data input
SCL I2CI clock input
RST External reset, low active
BUSY Busy status output pin (high level means busy)

Application Examples
Suitable For Temperature And Humidity Meter, Humidifier, Digital Meter...

  • Operating Voltage: 3.3V/5V
  • Size: 1.9″
  • Display Size: 41.35×28.11mm
  • Segments: 91
  • Viewing Angle: >170°
  • Display Color: Black/White
  • Grey Scale: 2
  • Full Refresh Time: 2s
  • Refresh Power: <5mW (typ.)
  • Stanby Current: <0.01uA (almost none)
  • Communication: I2C
  • Display Panel: E-paper
  • Experience: Paper-like
  • Environment: Ambient Light Required
  • Display Type: Passively Reflective
  • Outline Dimensions: 51×34 mm

  • No backlight, keeps displaying last content for a long time even when power down
  • Ultra low power consumption, basically power is only required for refreshing
  • I2C interface, for connecting with controller boards like Raspberry Pi/Arduino/STM32, etc.
  • Onboard MOS voltage translating circuit, compatible with 3.3V/5V MCUs
  • Comes with development resources and manual(driver board schematic, examples for Raspberry Pi/Arduino/STM32)
Warranty
Δεν καλύπτεται με εγγύση απο τον Κατασκευαστή
Company
Waveshare
G. Weight
0.052kg
Display Size
1.9 "
Display Color
  • Black-White
Touchscreen
No
Interface
  • I2C
