e-Paper Display Module 2.36" 296x168 (Red/Yellow/Black/White)

31-00023151

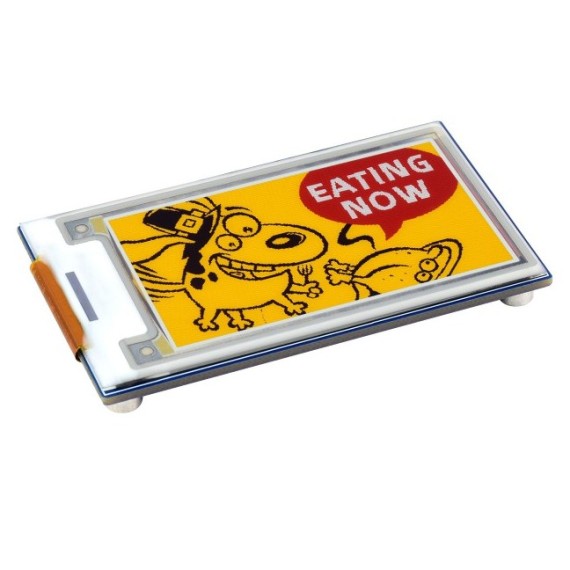

2.36inch e-Paper Module (G)
CompanyWaveshare Part Number2.36inch e-Paper Module (G)
In Stock
Ships in 24 Hours
2480
Our quantity discounts:
Quantity
10+
Price
22.32
Gropbotronics Store Availability
Availability in Retail Store
Payments & Shipping

2.36″ E-Paper Module (G)
Low Power, Wide Viewing Angle, Paper-Like Effect Without Electricity

Ideal for price tags, shelf labels, industrial instruments...

Advantages Of eINK

E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.

E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.

Onboard Voltage Translator
Compatible With 3.3V / 5V MCUs

Onboard SPI Control Interface
For Use With Controller Boards Like Raspberry Pi/STM32/Arduino

VCC Power (3.3V / 5V input)
GND Ground
DIN SPI MOSI pin
CLK SPI SCK pin
CS SPI chip selection, low active
DC Data/Command selection (high for data, low for command)
RST External reset, low active
BUSY Busy status output pin

Application Examples
Suitable For Price Tags, Asset/Equipment Tags, Shelf Labels, Conference Name Tags...

  • Operating Voltage: 3.3V/5V
  • Size: 2.36″
  • Display Size: 52.096×29.568mm
  • Dot Pitch: 0.176 × 0.176mm
  • Resolution: 296×168
  • Viewing Angle: >170°
  • Display Color: Red/Yellow/Black/White
  • Grey Scale: 2
  • Full Refresh Time: 12s
  • Refresh Power: <57mW (typ.)
  • Stanby Current: <0.01uA (almost none)
  • Communication: 3-wire SPI, 4-wire SPI
  • Display Panel: E-paper
  • Experience: Paper-like
  • Environment: Ambient Light Required
  • Display Type: Passively Reflective
  • Outline Dimensions: 69.5×39.5mm

  • No backlight, keeps displaying last content for a long time even when power down
  • Ultra low power consumption, basically power is only required for refreshing
  • SPI interface, for connecting with controller boards like Raspberry Pi/Jetson Nano/Arduino/STM32, etc.
  • Onboard voltage translator, compatible with 3.3V/5V MCUs
  • Comes with development resources and manual(driver board schematic, examples for Raspberry Pi/Arduino/STM32)
