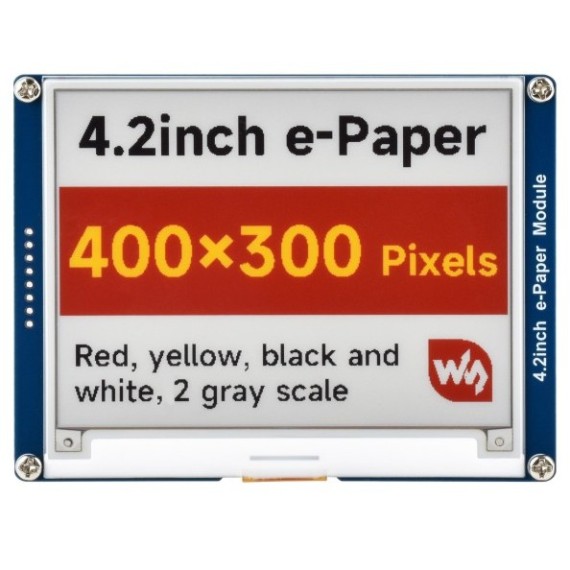

e-Paper Display 4.2" 400×300 (Red-Yellow-Black-White)

Κωδικός:

31-00030154

Part Number: 4.2inch e-Paper Module (G)

ΚατασκευαστήςWaveshare Part Number4.2inch e-Paper Module (G)

Διαθέσιμο

Αποστολή σε 24 ώρες

€44⁹⁰

Ποσοτικές εκπτώσεις:

Ποσότητα

10+

Τιμή

€40.41

+ −

Κάνε μια ερώτηση

Διαθεσιμότητα Καταστημάτων

Πληρωμή & Μεταφορικά

Περιγραφή
Χαρακτηριστικά

E-paper display utilizes microcapsule electrophoretic technology for displaying. The principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper. E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.

Features at a glance

No backlight, keeps displaying last content for a long time even when power down
Ultra low power consumption, basically power is only required for refreshing
Adapting SPI interface for connecting with controller boards like Raspberry Pi / Jetson Nano / Arduino / STM32, etc.
Onboard voltage translator, compatible with 3.3V / 5V MCUs
Comes with online development resources and manual (driver board circuit diagram, examples for Raspberry Pi / Jetson Nano / Arduino / STM32)

Technical data

Size	4.2inch
Driver Board Size	103.0mm × 78.5mm
Display Size	84.8mm × 63.6mm
Outline Dimensions (raw display)	91.00mm × 77.00mm × 1.00mm
Operating Voltage	3.3V / 5V (IO level voltage should be the same as the supply voltage)
Communication Interface	SPI
Dot Pitch	0.212mm × 0.212mm
Resolution	400 × 300
Display Color	Black, White, Red, Yellow
Grayscale	2
Refresh Time	21s
Refresh Power	<30 mW（typ.）
Sleep Current	< 0.01μA (close to 0)
Operating Temperature	0 ~ 40 ℃
Storage Temperature	-25 ~ 70 ℃
