Pi Display e-Paper 2.13" ΗΑΤ 250x120 (Red/Yellow/Black/White)

Pi Display e-Paper 2.13" HAT 250x122

Κωδικός:

31-00024908

Part Number: 2.13inch e-Paper HAT (G)

ΚατασκευαστήςWaveshare Part Number2.13inch e-Paper HAT (G)

Διαθέσιμο

Αποστολή σε 24 ώρες

€19⁹⁰

Ποσοτικές εκπτώσεις:

Ποσότητα

10+

Τιμή

€17.91

+ −

Κάνε μια ερώτηση

Διαθεσιμότητα Καταστημάτων

Πληρωμή & Μεταφορικά

Περιγραφή
Χαρακτηριστικά

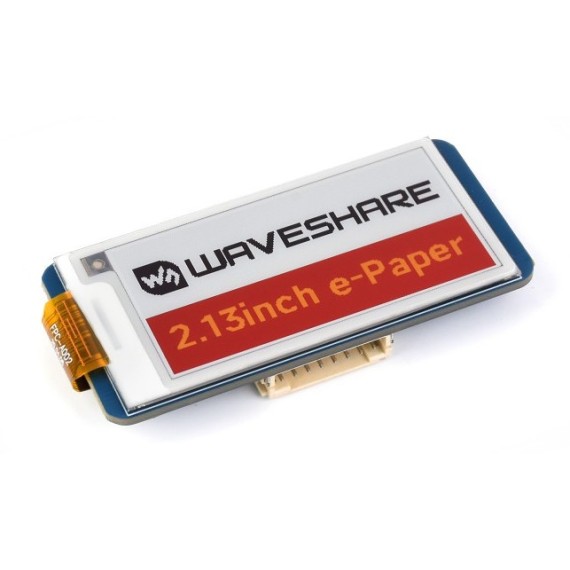

This is an E-Ink display HAT for Raspberry Pi, 2.13inch, 250x122 resolution, with embedded controller, communicating via SPI interface, supports partial refresh.

Due to the advantages like ultra low power consumption, wide viewing angle, great effect under sunlight, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.

Operating Voltage: 3.3V/5V
Size: 2.13″
Display Size: 48.55×23.70mm
Dot Pitch: 0.1943×0.1942mm
Resolution: 250×122 pixels
Viewing Angle: >170°
Display Color: Red/Yellow/Black/White
Grey Scale: 2
Full Refresh Time: 25s
Refresh Power: <10mW
Stanby Current: <0.01uA (almost none)
Communication: 3-wire SPI, 4-wire SPI
Display Panel: E-paper
Experience: Paper-like
Environment: Ambient Light Required
Display Type: Passively Reflective
Outline Dimensions: 65 × 30.2mm

No backlight, keeps displaying last content for a long time even when power down
Ultra low power consumption, basically power is only required for refreshing
SPI interface, for connecting with other controller boards like Raspberry Pi/Jetson Nano/Arduino/STM32, etc.

Onboard voltage translator, compatible with 3.3V/5V MCUs
Comes with online development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
