Display e-Paper 1.54" 200x200 (Black-White)

31-00012955
12955
CompanyWaveshare Part Number12955
In Stock
Ships in 24 Hours
1360
Our quantity discounts:
Quantity
10+
Price
12.24
Gropbotronics Store Availability
Availability in Retail Store
Payments & Shipping

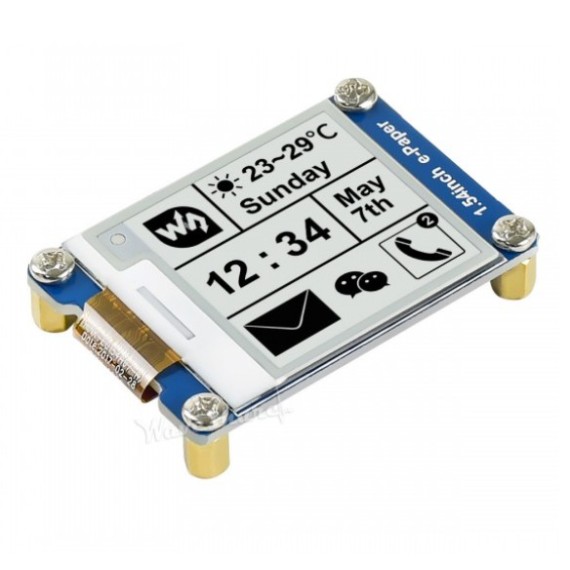

This is an E-Ink display module, 1.54inch, 200x200 resolution, with embedded controller, communicating via SPI interface, supports partial refresh.

Due to the advantages like ultra low power consumption, wide viewing angle, great effect under sunlight, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.

  • Operating voltage: 3.3V / 5V
  • Interface: 3-wire SPI, 4-wire SPI
  • Outline dimension: 48mm × 33mm
  • Display size: 27.6mm × 27.6mm
  • Dot pitch: 0.138 × 0.138
  • Resolution: 200 × 200
  • Display color: black, white
  • Grey level: 2
  • Partial refresh time: 0.3s
  • Full refresh time: 2s
  • Refresh power: 26.4mW(typ.)
  • Standby power: <0.017mW
  • Viewing angle: >170°
  • No backlight, keeps displaying last content for a long time even when power down
  • Ultra low power consumption, basically power is only required for refreshing
  • SPI interface, for connecting with controller boards like Raspberry Pi/Arduino/Nucleo, etc.
  • Onboard voltage translator, compatible with 3.3V/5V MCUs
  • Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)
Company
Waveshare
Part Number
12955
Display Color
  • Black-White
Warranty
12 Month Manufacturer Warranty
G. Weight
0.023kg
Display Size
1.54 "
Resolution
200x200
Touchscreen
No
Interface
  • SPI
