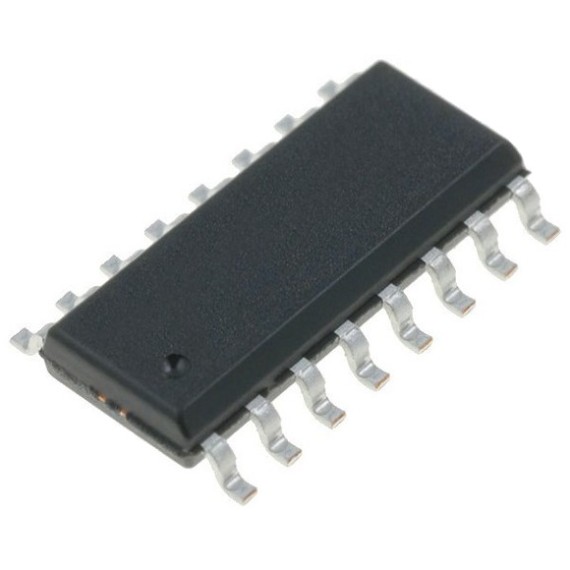

Driver 2CH - L6598D

05-00016500
L6598D
ΚατασκευαστήςSTMicroelectronics Part NumberL6598D
Διαθέσιμο
Αποστολή σε 24 ώρες
€400
STMicroelectronics
+ −
Αγαπημένα
Κάνε μια ερώτηση
Gropbotronics Store Availability
Διαθεσιμότητα Καταστημάτων
Πληρωμή & Μεταφορικά

The L6598 device is manufactured with the BCD™ offline technology, able to ensure voltage ratings up to 600 V, making it perfectly suited for
AC/DC adapters and wherever a resonant topology can be beneficial. The device is intended to drive two power MOSFETs, in the classical half
bridge topology. A dedicated timing section allows the designer to set soft-start time, soft-start and minimum frequency. An error amplifier, together with the two enable inputs, are made available. In addition, the integrated bootstrap diode and the Zener clamping on low voltage supply, reduces to a minimum the external parts needed in the applications.

  • High voltage rail up to 600 V
  • dV/dt immunity ±50 V/ns in full temperature range
  • Driver current capability: 250 mA source 450 mA sink
  • Switching times 80/40 ns rise/fall with 1 nF load
  • CMOS shutdown input
  • Undervoltage lockout
  • Soft-start frequency shifting timing
  • Sense op amp for closed loop control or protection features
  • High accuracy current controlled oscillator
  • Integrated bootstrap diode
  • Clamping on Vs
  • Available in DIP16 and SO16 packages
  • Type of integrated circuit: Driver
  • Kind of integrated circuit: Resonant mode controller
  • Case: SO16
  • Output current: 250...450mA
  • Number of channels: 2
  • Supply voltage: 10...16.6V
  • Mounting: SMD
  • Operating temperature: -40...125°C
Εγγύηση
Ως εξάρτημα, δεν καλύπτεται
Θήκη
SO16
Κατασκευαστής
STMicroelectronics
Μικτό Βάρος
0.001kg
