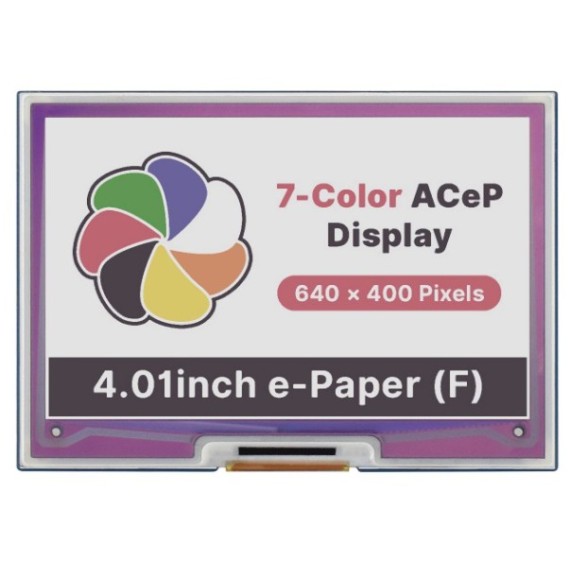

Pi Display e-Paper 4.01" ΗΑΤ 640x400 (7-Color)

από WAVESHARE
4.01″ 7-Color E-Paper HAT (F) Low Power Consumption, Wide Viewing Angle, Paper-Like Displaying Without Electricity Ideal for price tags, shelf...
31-00019283
Ογκομετρικό βάρος: 0.02kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: WAVESHARE
Part Number: 4.01inch e-Paper HAT (F)
Χώρα Προέλευσης: Κίνα
Κατόπιν Παραγγελίας
Παράδοση 2-6 Εβδομάδες
Χωρίς απόθεμα στο φυσικό κατάστημα
69.90
Χωρίς ΦΠΑ 56.37
+
Τιμές βάση ποσότητας (Λιανική - Χονδρική):
Ποσότητα 10+
Τιμή 62.91

ΠΕΡΙΓΡΑΦΗ

4.01″ 7-Color E-Paper HAT (F)
Low Power Consumption, Wide Viewing Angle, Paper-Like Displaying Without Electricity

Ideal for price tags, shelf labels, industrial instruments...

Advantages Of eINK

E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.

E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.

Standard Raspberry Pi 40PIN GPIO Header
Compatible With Raspberry Pi Series Boards, Jetson Nano

for reference only, the Raspberry Pi 4 model B is NOT included.

Onboard Voltage Translator
Compatible With 3.3V / 5V MCUs

Onboard SPI Control Interface
For Use With Controller Boards Like Raspberry Pi/Jetson Nano/Arduino/STM32

VCC Power (3.3V / 5V input)
GND Ground
DIN SPI MOSI pin
CLK SPI SCK pin
CS SPI chip selection, low active
DC Data/Command selection (high for data, low for command)
RST External reset, low active
BUSY Busy status output

Application Examples
Suitable For Price Tags, Asset/Equipment Tags, Shelf Labels, Conference Name Tags...

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
:
WAVESHARE
Part Number:
4.01inch e-Paper HAT (F)
Μικτό Βάρος:
0.017kg
Χώρα Προέλευσης:
Κίνα
Τύπος:
e-Paper
Μέγεθος Οθόνης:
4.01"
Ανάλυση:
640x400
Χρώματα Οθόνης:
7-Color
Οθόνη Aφής:
Όχι
Διασύνδεση:
  • SPI

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • Operating Voltage: 3.3V/5V
  • Size: 4.01″
  • Display Size: 86.40×54.00mm
  • Dot Pitch: 0.135×0.135mm
  • Resolution: 640×400 pixels
  • Viewing Angle: >170°
  • Display Color: ACeP 7-Color
  • Grey Scale: 2
  • Full Refresh Time: 30s
  • Refresh Power: 50mW (typ.)
  • Stanby Current: <0.01uA (almost none)
  • Communication: 3-wire SPI, 4-wire SPI
  • Display Panel: E-paper
  • Experience: Paper-like
  • Environment: Ambient Light Required
  • Display Type: Passively Reflective
  • Outline Dimensions: 98.50 × 70.00mm

ΔΥΝΑΤΟΤΗΤΕΣ

  • Advanced Color ePaper (ACeP) technology, supports 7-Color display
  • No backlight, keeps displaying last content for a long time even when power down
  • Ultra low power consumption, basically power is only required for refreshing
  • Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
  • SPI interface, for connecting with controller boards like Raspberry Pi/Jetson Nano/Arduino/STM32, etc.
  • Onboard voltage translator, compatible with 3.3V / 5V MCUs
  • Comes with development resources and manual (driver board schematic diagram, examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
