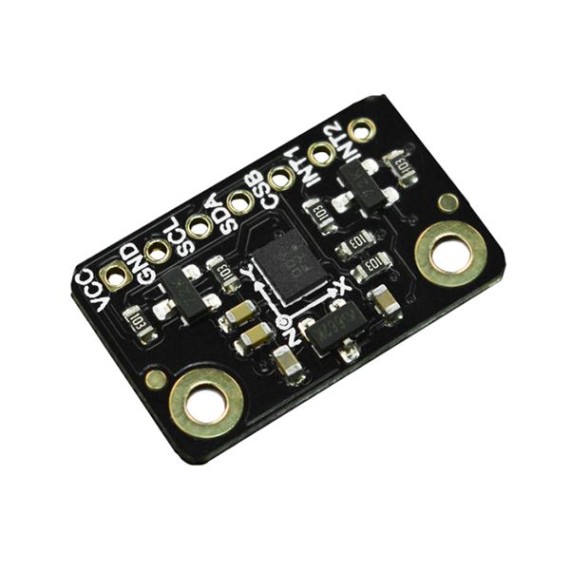

Fermion BMX160 9-axis Sensor

Κωδικός:

25-00016326

Part Number: SEN0373

ΚατασκευαστήςDFRobot Part NumberSEN0373

Διαθέσιμο

Αποστολή σε 24 ώρες

€17³⁰

+ −

Κάνε μια ερώτηση

Διαθεσιμότητα Καταστημάτων

Πληρωμή & Μεταφορικά

Περιγραφή
Χαρακτηριστικά

This compact BMX160 9-axis sensor from Bosch Sensortec is an ideal solution for applications that face strict constraints of board space, power consumption, and appearance like wearable fitness trackers, smart remote controls, quadcopters, and so on.

This BMX160 sensor is the smallest 9-axis sensor in the industry. It comprises an accelerometer, gyroscope, and geomagnetic sensor in a single package, and features less than 1.5mA power consumption.

Due to the compact design, BMX160 can be ideally integrated into wearables like smartwatches or glasses for augmented reality. Combined with the BSX sensor data fusion software library of Bosch Sensortec, the sensor performance can be further improved.

Operating Voltage: 3.3V-5.5V
Communication Interface:
- I2C(5V Compatible)
- Other ports only support 3.3V
Default I2C Address: 0x68
BMX160 Accelerometer:
- Accelerometer: ±2g/±4g/±8g/±16
BMX160 Gyroscope:
- Range: ±125°/s ~ 2000°/s
BMX160 Geomagnetic:
- Range: ±1150uT(x-,y-axis);±2500uT(z-axis)
- Resolution: ~0.3
Outline Dimension: 20x12.5mm
Mounting Hole Position: 15mm
Mounting Hole Size:
- Inner diameter: 2mm
- Outer diameter: 3.7mm
