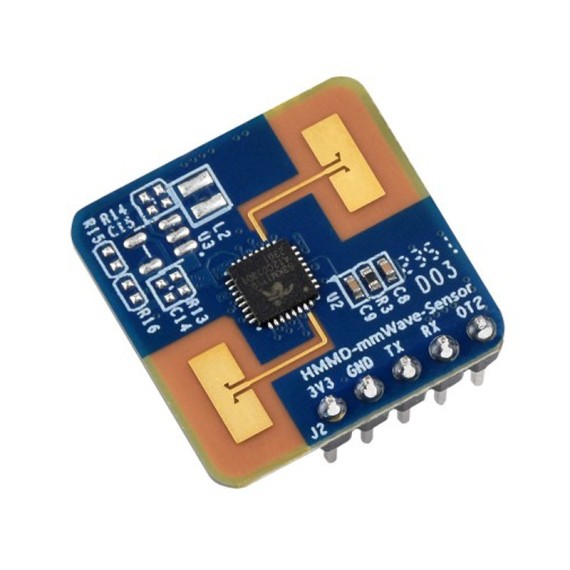

Waveshare Human Detection Sensor - mmWave Radar

από WAVESHARE
Αυτός ο αισθητήρας ανίχνευσης ανθρώπινων μικρο-κινήσεων MmWave με ραντάρ MmWave 24GHz, βασίζεται σε S3KM1110 και υιοθετεί τεχνολογία Frequency Modulated Continuous Wave (FMCW) με συμπαγές μέγεθος και εύκολη ενσωμάτωση.
31-00026536
Ογκομετρικό βάρος: 0.01kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: WAVESHARE
Part Number: HMMD-mmWave-Sensor
Διαθέσιμο
Αποστολή σε 24 ώρες
Χωρίς απόθεμα στο φυσικό κατάστημα
3.90
Χωρίς ΦΠΑ 3.15
+
Τιμές βάση ποσότητας (Λιανική - Χονδρική):
Ποσότητα 10+
Τιμή 3.12

ΠΕΡΙΓΡΑΦΗ

This Human Micro-Motion Detection MmWave Sensor with a 24GHz MmWave Radar, is based on S3KM1110 and adopts Frequency Modulated Continuous Wave (FMCW) Technology with Compact Size And Easy Integration.

The HMMD-mmWave-Sensor is a human micro-motion sensor, adopts Frequency Modulated Continuous Wave (FMCW) technology to detect and identify moving, standing, and motionless human body. Combining radar signal processing with accurate human detection and ranging algorithms, supports configuring the sensibility for each range independently to improve anti-interference performance. Compact size, low power consumption, and easy integration, it can be widely used in AIoT scenarios such as Smart Home, Intelligent Security, Smart Business, and Intelligent Lights, etc.

  • Based on AIoT mmWave Sensor SoC S3KM1110, onboard high performance 24GHz 1T1R antennas
  • Onboard MCU and built-in human micro-motion sensing algorithm for accurate detecting of moving, micro-motion, and standing human
  • Provides UART communication protocol, supports configuring sensing distance range, sensitivity, and absence report delay, easy to operate
  • Supports UART port and GPIO header output, for connecting to host boards such as Raspberry Pi and Arduino
  • Wide-range moving human body sensing distance, supports top-mounted and wall-mounted detection
  • Comes with online resources and manual (examples for Raspberry Pi/RP2040/Arduino/ESP32/Jetson Nano)

Application Scenarios

  • Smart Home
  • Presence Detection
  • Smart Office
  • Screen Sensing

Compatible With Multiple Platforms

Provides Demo And User Manual For Raspberry Pi / Raspberry Pi Pico / Jetson Nano / ESP32 / Arduino, Easier To Develop And Integrate, And Better Expansibility

Visual Host Support

It is recommended to use with a USB to UART Module, to easily connect to the Host Software for Configuration and Debugging

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
:
WAVESHARE
Part Number:
HMMD-mmWave-Sensor
Μικτό Βάρος:
0.005kg
Τύπος Αισθητήρα:
  • Κίνησης
Τυπική Τάση Εισόδου:
  • 3.3VDC
Ρεύμα Λειτουργίας:
50mA

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

HARDWARE

  • Frequency band: 24~24.25GHz
  • Bandwidth: 0.25GHz
  • Modulation: FMCW
  • Power supply: 3.3V
  • Output interface: UART & GPIO
  • UART baudrate: 115200bps (default)
  • Environment temperature: -40~85℃
  • Dimension: 20×20mm

SYSTEM PERFORMANCE

  • Detection range (wall-mounted): Moving human target: 10m; Micro-motion human target: 6m
  • Detection range (top-mounted): Moving human target: 5m; Micro-motion human target: 4m
  • Detection distance resolution: 0.7m
  • Detection angle: ±60°
  • Detection accuracy: 0.15m (moving target within 10m radial distance from the radar)
  • Average operation current: 50mA
  • Data refresh cycle: 100ms

Pinout

Direction & Detection Range

Outline Dimensions

ΔΥΝΑΤΟΤΗΤΕΣ

Installation & Detection Range

Top-Mounted - Detection Rang Diagram



Wall-Mounted - Detection Range Diagram
