Wireless 3D Attitude Sensor Module for Posture Detection

25-00016978
DFR1179
ΚατασκευαστήςDFRobot Part NumberDFR1179
Διαθέσιμο
Αποστολή σε 24 ώρες
€7490
DFRobot
+ −
Αγαπημένα
Κάνε μια ερώτηση
Gropbotronics Store Availability
Διαθεσιμότητα Καταστημάτων
Πληρωμή & Μεταφορικά

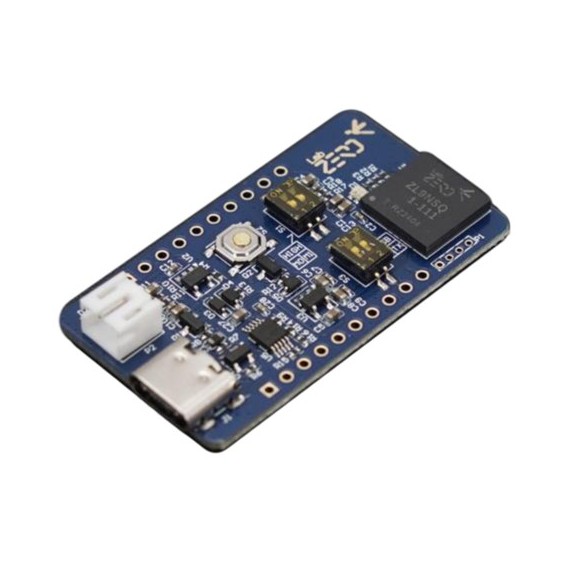

The ZL9NSQ is a high-performance 3D attitude sensor module that integrates a three-axis accelerometer, a three-axis gyroscope, and a three-axis magnetometer. Featuring a 32-bit ARM Cortex-M4F microprocessor, it utilizes the IMU Motion Engine algorithm along with a 2.4G wireless transceiver and packaged antenna.

Advanced signal processing algorithms handle high-speed sampled sensor data to deliver accurate and reliable quaternions, Euler angles, calibrated accelerations, and calibrated angular velocities, providing precise three-dimensional attitude information.


Advanced Communication Methods

Supporting RF (Bluetooth), UART, and SPI communication methods, the ZL9NSQ allows for versatile data transmission and integration into various systems.

Integrated IMU Motion Engine Algorithm

The IMU Motion Engine software provides a complete set of composite data fusion algorithms, including attitude solution, interference judgment, and online calibration. This enables users to obtain 3D attitude information easily without the need for extensive programming.

Applications
  • Posture monitoring
  • Gaming and entertainment equipment
  • Personal health and fitness
  • Inertial navigation
Accelerometer Parameters

Range: ±16g
Zero bias stability: 2mg
Initial zero value: 40mg
Scale factor error: ±0.06%
Nonlinearity: ±0.1%
Axis alignment error: ±0.05°
Noise density: 75ug/√Hz
Bandwidth: 260Hz

Gyroscope Parameters

Range: ±2000°/s
Bias stability: 5°/hr
Initial zero value: 0.2°/s
Scale factor error: ±0.05%
Nonlinearity: ±0.1%
Axis alignment error: ±0.05°
Noise density: 0.0028°/s/√Hz
Bandwidth: 256Hz

Magnetometer Parameters

Range: ±4900uT
Bias stability: 20nT
Scale factor error: ±0.09%
Nonlinearity: ±0.3%
Axis alignment error: ±0.05°
Noise density: 0.14nT/√Hz
Bandwidth: 200Hz


Technical data
  • Working voltage: J1-USB Type-C (5V), P2-PH2.0 (3.3V), P4-VCC (5V)
  • Communication method: RF (Bluetooth), UART, SPI
  • Pitch/cross accuracy (static): 0.05°
  • Pitch/cross accuracy (dynamic): 0.1°
  • Heading accuracy error (magnetometer assisted): 0.5°
  • Relative heading error (static): ＜1°/hr
  • Relative heading error (dynamic): 5°/hr
  • Angle resolution: ＜0.01°
  • Angle repeatability: ＜0.1°
  • Sensor raw data output rate: Max 250Hz
  • Navigation data output rate: Max 250Hz
Package contents
  1. ZL9NSQ Wireless IMU Sensor Module ×1
  2. 2.54-10Pin pin header ×2

Κατασκευαστής
DFRobot
Part Number
DFR1179
Εγγύηση
Ως εξάρτημα, δεν καλύπτεται
Καθ. Βάρος
0.084kg
Τύπος Αισθητήρα
  • IMU
  • Γυροσκόπιο
  • Επιταχυνσιόμετρο
  • Μαγνητόμετρο
Τυπική Τάση Εισόδου
  • 3.3-5VDC
Ρεύμα Λειτουργίας
15mA
Διασύνδεση
  • Ψηφιακή
Πρωτόκολλο Eπικοινωνίας
  • SPI
  • UART
