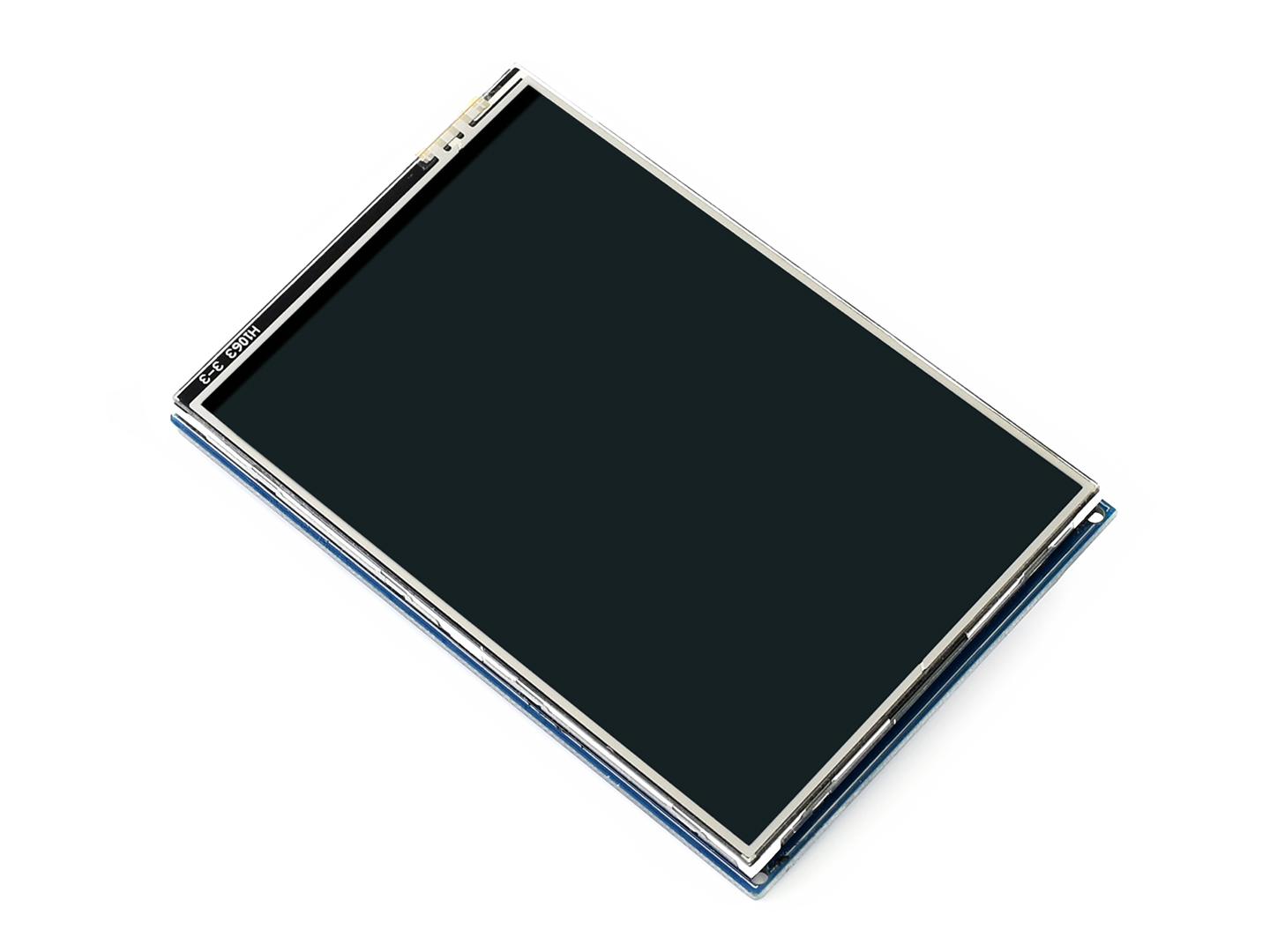

Pi Display 3.5" 480x320 IPS Resistive Touchscreen

από WAVESHARE
31-00012287
Ογκομετρικό βάρος: 0.07kg
Κατασκευαστής: WAVESHARE
Part Number: 12287
Χώρα Προέλευσης: Κίνα
Διαθέσιμο
Αποστολή σε 24 ώρες
Χαμηλό απόθεμα στο κατάστημα
31.90
Χωρίς ΦΠΑ 25.73
+
Τιμές βάση ποσότητας (Λιανική - Χονδρική):
Ποσότητα 10+
Τιμή 28.71

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Κατασκευαστής
:
WAVESHARE
Part Number:
12287
Μικτό Βάρος:
0.074kg
Χώρα Προέλευσης:
Κίνα
Τύπος:
IPS LCD
Μέγεθος Οθόνης:
3.5"
Ανάλυση:
480x320
Αναλογία Οθόνης:
  • 8:5
Χρώματα Οθόνης:
Colorful
Οθόνη Aφής:
Resistive
Διασύνδεση:
  • SPI

  • 3.5inch RPi LCD (A) and 3.5inch RPi LCD (B) are hardware compatible with each other (uses different driver), and can be mutually substituted in most cases. (A) for low cost ver. while (B) for IPS ver. with better displaying.
  • We don't recommend customers to use it for video or games.

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • LCD Type: IPS
  • LCD Interface: SPI
  • Touch Screen Type: Resistive
  • Touch Screen Controller: XPT2046
  • Colors: 65536
  • Backlight: LED
  • Resolution: 320x480 (Pixel)
  • Aspect Ratio: 8:5

ΔΥΝΑΤΟΤΗΤΕΣ

  • 320×480 resolution
  • Resistive touch control
  • Supports any revision of Raspberry Pi (directly-pluggable)
  • Drivers provided (works with your own Raspbian/Ubuntu directly)
  • IPS technology, high quality and perfect displaying from very wide viewing angle
  • Size perfectly fits the Pi
  • High quality immersion gold surface plating
  • Supports Raspbian system, enables your system to:
    • Take photos by touching (up to 17 camera modes)
    • Support software keyboard (system interaction without keyboard/mouse)

ΔΙΑΣΤΑΣΕΙΣ

3.5inch-RPi-LCD-B-dimension

ΣΥΝΔΕΣΜΟΛΟΓΙΑ

PIN NO. SYMBOL DESCRIPTION
1, 17 3.3V Power positive (3.3V power input)
2, 4 5V Power positive (5V power input)
3, 5, 7, 8, 10, 12, 13, 15, 16 NC NC
6, 9, 14, 20, 25 GND Ground
11 TP_IRQ Touch Panel interrupt, low level while the Touch Panel detects touching
18 LCD_RS Instruction/Data Register selection
19 LCD_SI / TP_SI SPI data input of LCD/Touch Panel
21 TP_SO SPI data output of Touch Panel
22 RST Reset
23 LCD_SCK / TP_SCK SPI clock of LCD/Touch Panel
24 LCD_CS LCD chip selection, low active
26 TP_CS Touch Panel chip selection, low active

ΤΟ ΚΙΤ ΠΕΡΙΕΧΕΙ

  1. 3.5inch RPi LCD (B) x 1
  2. Touch pen x 1
  3. RPi screws pack (2pcs) x 1
  4. Quick start sheet x1
