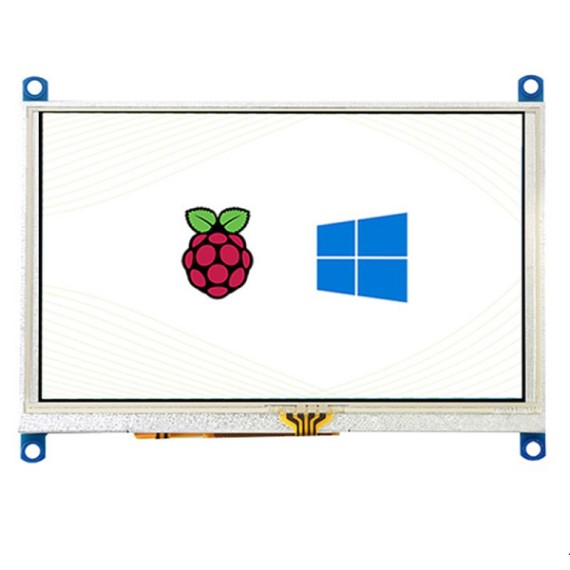

Display 5" HDMI 800x480 LCD Resistive Touchscreen

από WAVESHARE
5" LCD display with 800x480 high resolution and HDMI. Supports Raspberry Pi and mini-PCs. Have USB interface for touch control.
31-00010737
Ογκομετρικό βάρος: 0.23kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: WAVESHARE
Part Number: 5inch HDMI LCD (B)
Χώρα Προέλευσης: Κίνα
Διαθέσιμο
Αποστολή σε 24 ώρες
Χωρίς απόθεμα στο φυσικό κατάστημα
59.90
Χωρίς ΦΠΑ 48.31
+
Τιμές βάση ποσότητας (Λιανική - Χονδρική):
Ποσότητα 10+
Τιμή 53.91

ΠΕΡΙΓΡΑΦΗ

5" LCD display with 800x480 high resolution and HDMI.

Supports Raspberry Pi and mini-PCs. Have USB interface for touch control.

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
:
WAVESHARE
Part Number:
5inch HDMI LCD (B)
Μικτό Βάρος:
0.233kg
Χώρα Προέλευσης:
Κίνα
Τύπος:
LCD/TFT
Μέγεθος Οθόνης:
5"
Ανάλυση:
800x480
Αναλογία Οθόνης:
  • 16:10
Χρώματα Οθόνης:
Colorful
Οθόνη Aφής:
Resistive
Διασύνδεση:
  • HDMI

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • 800×480 high resolution
  • Resistive touch control
  • Supports Raspberry Pi
  • Supports Banana Pi / Banana Pro, comes with Lubuntu, Raspbian images
  • Supports BB Black, comes with Angstrom image
  • For other mini-PCs, driver is required and should be developed by users
  • Not only for mini-PCs, it can work as a computer monitor just like any other general HDMI screen
  • HDMI interface for displaying, USB interface for touch control
  • Backlight can be turned off to lower power consumption

Note: to use the LCD with following mini-PCs, additional cables are required and should be purchased separately:
Raspberry Pi Zero: HDMI cable, USB-type-A-receptacle-to-Micro-B-plug-cable
BB Black: HDMI cable

Rev1.1:

  • For the Raspberry Pi, Raspbian/Ubuntu driver is required
  • When work as a computer monitor, touch function is unavailable

Rev2.1 New Features:

  • Standard HID protocol, easy to be integrated into your system
  • For the Raspberry Pi, supports Raspbian, Ubuntu, single touch, and driver free
  • When work as a computer monitor, supports Windows 10/8.1/8/7, single touch, and driver free
