Pi Display e-Paper 5.83" ΗΑΤ 648x480 (Black-White-Red)

Κωδικός:

31-00014600

Part Number: 5.83inch e-Paper HAT (B)

ΚατασκευαστήςWaveshare Part Number5.83inch e-Paper HAT (B)

Κατόπιν παραγγελίας

Διαθέσιμο σε 45-60 ημέρες

€64⁰⁰

Ποσοτικές εκπτώσεις:

Ποσότητα

10+

Τιμή

€57.60

+ −

Κάνε μια ερώτηση

Διαθεσιμότητα Καταστημάτων

Πληρωμή & Μεταφορικά

Περιγραφή
Χαρακτηριστικά

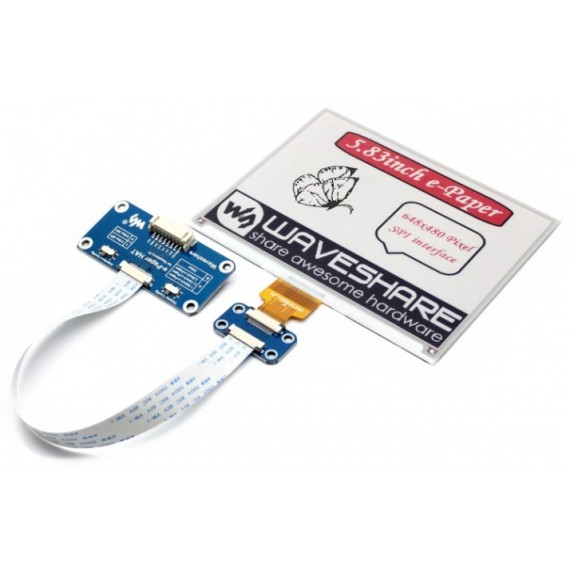

5.83″ E-Paper HAT (B)
Low Power Consumption, Wide Viewing Angle, Paper-Like Displaying Without Electricity

Ideal for price tags, shelf labels, industrial instruments...

Advantages Of eINK

E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.

E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.

Interface

SYMBOL	DESCRIPTION
VCC	3.3V~5V
GND	Ground
DIN	SPI MOSI pin
CLK	SPI SCK pin
CS	SPI chip selection, low active
DC	Data/Command selection (high for data, low for command)
RST	External reset, low active
BUSY	Busy status output, low active

Application Examples

Suitable For Price Tags, Asset/Equipment Tags, Shelf Labels, Conference Name Tags...

Operating Voltage: 3.3V/5V
Size: 5.83″
Display Size: 119.232×88.320mm
Dot Pitch: 0.184×0.184mm
Resolution: 648×480 pixels
Viewing Angle: >170°
Display Color: Red, Black, White
Grey Scale: 2
Full Refresh Time: 20s
Refresh Power: 26.4mW(typ.)
Stanby Current: <0.017mW
Communication: SPI
Display Panel: E-paper
Experience: Paper-like
Environment: Ambient Light Required
Display Type: Passively Reflective
Outline Dimensions: 125.40mm × 99.50mm

No backlight, keeps displaying last content for a long time even when power down
Ultra low power consumption, basically power is only required for refreshing
Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano

SPI interface, for connecting with other controller boards like Raspberry/Arduino/Nucleo, etc.
Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
