Pi Display e-Paper 7.5" HAT 640x384 (Black-White-Red)

Κωδικός:

31-00013505

Part Number: 13505

ΚατασκευαστήςWaveshare Part Number13505

Κατόπιν παραγγελίας

Διαθέσιμο σε 45-60 ημέρες

€84⁹⁰

Ποσοτικές εκπτώσεις:

Ποσότητα

10+

Τιμή

€76.41

+ −

Κάνε μια ερώτηση

Διαθεσιμότητα Καταστημάτων

Πληρωμή & Μεταφορικά

Περιγραφή
Χαρακτηριστικά

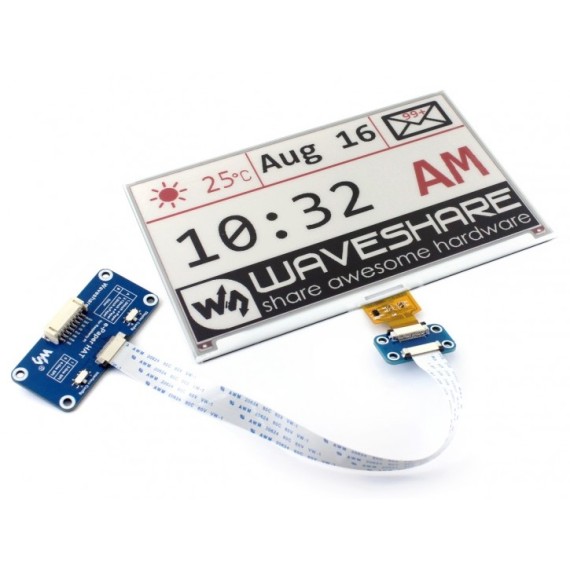

This is an E-Ink display HAT for Raspberry Pi, 7.5inch, 640x384 resolution, with embedded controller, communicating via SPI interface, supports red, black, and white three-color display.

Due to the advantages like ultra low power consumption, wide viewing angle, great effect under sunlight, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.

Operating voltage: 3.3V
Interface: SPI
Outline dimension: 170.2mm × 111.2mm
Display size: 163.2mm × 97.92mm
Dot pitch: 0.255 × 0.255
Resolution: 640 × 384
Display color: red, black, white
Grey level: 2
Full refresh time: 31s
Refresh power: 38mW(typ.)
Standby power: <0.017mW
Viewing angle: >170°

No backlight, keeps displaying last content for a long time even when power down
Ultra low power consumption, basically power is only required for refreshing
Compatible with Raspberry Pi 2B/3B/Zero/Zero W
SPI interface, for connecting with other controller boards like Raspberry/Arduino/Nucleo, etc.
Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)
