Pi Display e-Paper Flexible 2.9" ΗΑΤ 296x128 (Black - White)

Κωδικός:

31-00016565

Part Number: 2.9inch e-Paper HAT (D)

ΚατασκευαστήςWaveshare Part Number2.9inch e-Paper HAT (D)

Κατόπιν παραγγελίας

Διαθέσιμο σε 45-60 ημέρες

€26⁰⁰

Ποσοτικές εκπτώσεις:

Ποσότητα

10+

Τιμή

€23.40

+ −

Κάνε μια ερώτηση

Διαθεσιμότητα Καταστημάτων

Πληρωμή & Μεταφορικά

Περιγραφή
Χαρακτηριστικά

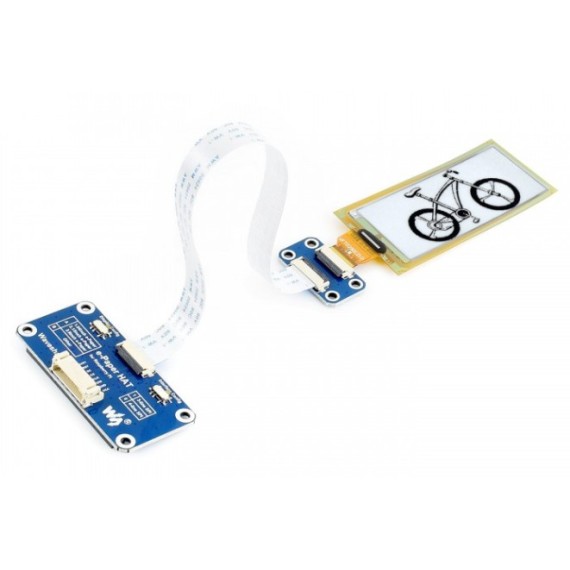

2.9″ Flexible E-Paper HAT (D)

This is a flexible E-Ink display HAT for Raspberry Pi, 2.9inch, 296×128 resolution, with embedded controller, communicating via SPI interface, supports partial refresh.

Compared with normal e-Paper panels, this flexible panel allows bending without being damaged, and it's thinner and lighter.

Combined with the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications where curved surface display is required, such as industrial instruments, smart wearable-devices, and so on.

SYMBOL	DESCRIPTION
VCC	3.3V / 5V
GND	Ground
NC	NC
DIN	SPI MOSI pin
CLK	SPI SCK pin
CS	SPI chip selection, low active
DC	Data/Command selection (high for data, low for command)
RST	External reset, low active
BUSY	Busy status output, low active

Operating voltage: 3.3V
Interface: 3-wire SPI, 4-wire SPI
Outline dimension: 79×36.7×0.34mm
Display size: 66.9×29.06mm
Dot pitch: 0.227×0.226
Resolution: 296×128
Display color: Black, White
Grey level: 2
Full refresh time: 2s
Refresh power: 26.4mW(typ.)
Standby power: <0.017mW
Viewing angle: >170°

Flexible e-Paper, the display section is bendable (DON'T bend the FPC section)
No backlight, keeps displaying last content for a long time even when power down
Ultra low power consumption, basically power is only required for refreshing

Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
Preserved solder pads for SPI interface, for connecting with other controller boards like Arduino/Nucleo, etc.
Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
