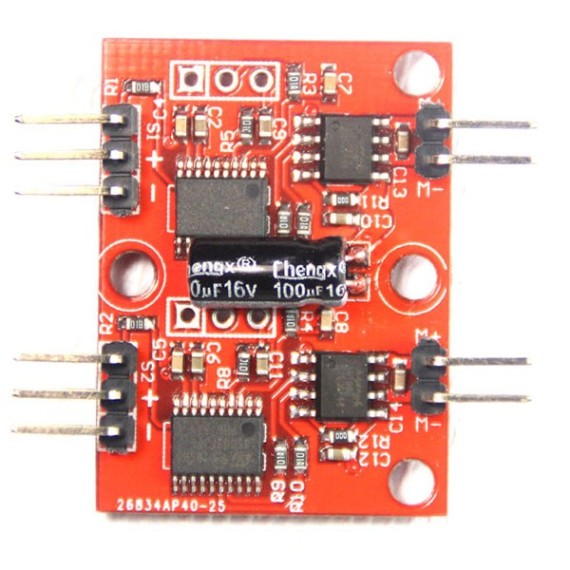

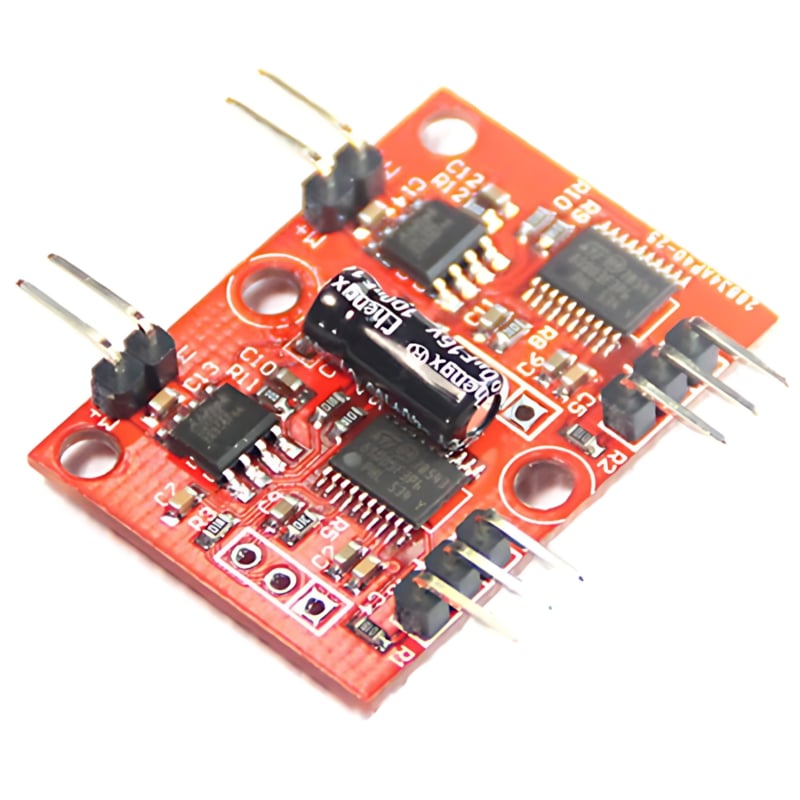

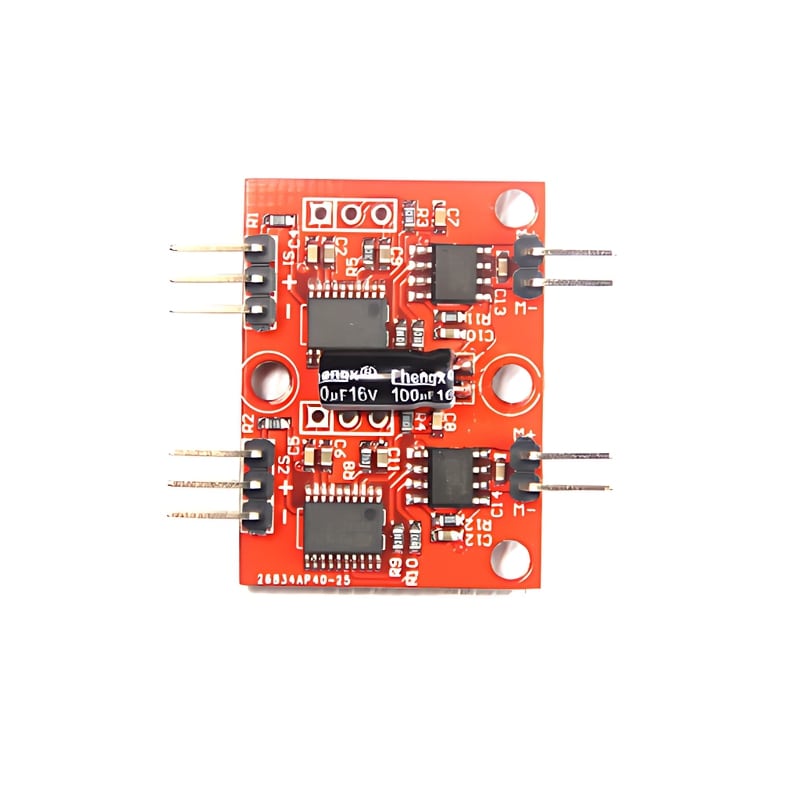

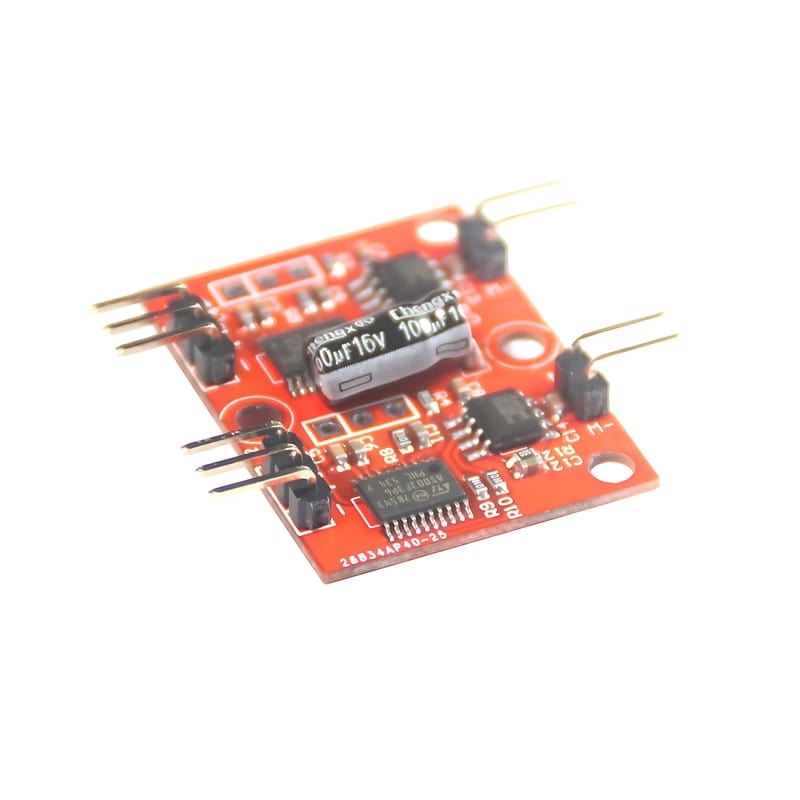

2-Channel DC Motor Controller

Κωδικός:

11-00013209

Part Number: FT-SMC-2CH

ΚατασκευαστήςFeetech Part NumberFT-SMC-2CH

Διαθέσιμο

Αποστολή σε 24 ώρες

€4²⁰

Ποσοτικές εκπτώσεις:

Ποσότητα

10+

Τιμή

€3.36

+ −

Κάνε μια ερώτηση

Διαθεσιμότητα Καταστημάτων

Πληρωμή & Μεταφορικά

Περιγραφή
Χαρακτηριστικά

Key features

Easy to control 2CH DC motor
Control DC motor to bidirectional continuous rotation
The speed is linear response to PWM

Technical data

Controller Chip: STM8F003F3P6
Working Voltage Range: 4V–9V
Recommended Voltage: 6V
IDLE Current: 10mA
1CH Continuous Load Current: 1.3A
Working Temperature: -5℃–60℃
Dimensions (L×W×H): 34mm×25mm×7.5mm

How it works

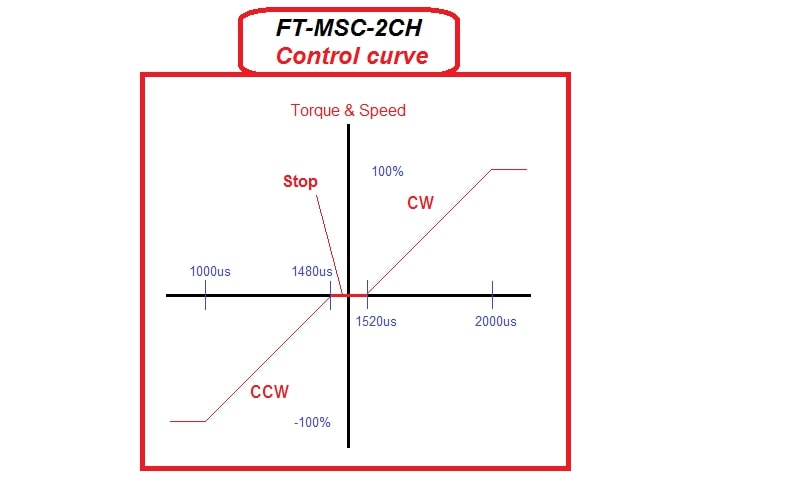

The motor controller is controlled through pulse width modulation. Rotational speed and direction are determined by the duration of a high pulse, in the 1000μs–2000μs range. For smooth rotation, the servo needs a 20 ms pause between pulses. As the length of the pulse decreases from 1500μs, the servo will gradually rotate faster in the counter-clockwise direction. Likewise, as the length of the pulse increases from 1500μs, the servo will gradually rotate faster in the clockwise direction.
