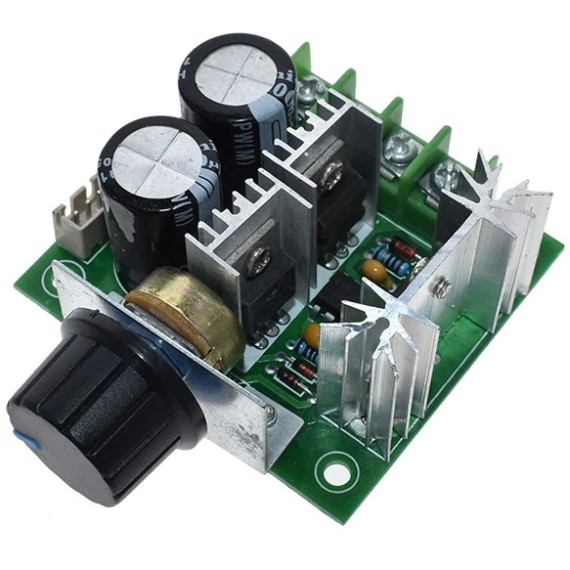

DC Motor PWM Speed Controller 9-50V 10A

από OEM
Ελέγξτε την ταχύτητα ενός κινητήρα DC με αυτόν τον ελεγκτή. Υψηλή απόδοση, υψηλή ροπή, χαμηλή παραγωγή θερμότητας. Με προστασία αντίστροφης πολικότητας, υψηλή προστασία ρεύματος. Αυτός ο διακόπτης ελέγχου ταχύτητας κινητήρα μπορεί να ελέγξει την ταχύτητα του κινητήρα από 10%-100%.
19-00090196
Ογκομετρικό βάρος: 0kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: OEM
Χώρα Προέλευσης: Κίνα
Διαθέσιμο
Αποστολή σε 24 ώρες
Διαθέσιμο στο φυσικό κατάστημα
5.90
Χωρίς ΦΠΑ 4.76
+
Τιμές βάση ποσότητας (Λιανική - Χονδρική):
Ποσότητα 10+ 100+
Τιμή 4.72 4.13

ΠΕΡΙΓΡΑΦΗ

Control the speed of a DC motor with this controller. High efficiency, high torque, low heat generating. With reverse polarity protection, high current protection. This engine speed control switch can control the engine speed from 10%-100%. It is widely used in industrial production. Comes with a button to control the speed of the motor. Easy to handle!



ΣΗΜΕΙΩΣΕΙΣ

  • Must be connected to the load to adjust the speed.
  • With the protection of the reverse connection of the power supply, protection against overvoltage, ceramic fuse of Fast Fusion 10A.
  • It can be controlled directly with PLC voltage.
  • The potentiometer and terminals may differ in color and material.
  • The choice is random. Thanks for understanding.

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
:
OEM
Μικτό Βάρος:
0.001kg
Χώρα Προέλευσης:
Κίνα
Max. Current per Channel:
10A
Τύπος Οδηγού:
  • DC Motor

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • Working Voltage: DC 9V - 50V
  • Control Power: 0.01-500W
  • Static Current: 0.02A (Standby)
  • Rated Current: 10A
  • PWM Duty Cycle: 10% -100%
  • PWM Frequency: 13 KHz
  • Control Voltage: 0-5V
    • Potentiometer kind: Single turn
    • Resistance: 10kΩ
    • Power: 125mW
    • Mounting: THT
    • Characteristics: Linear
    • Body material: Metal
    • Mechanical rotation angle: 300°
    • Max. operating voltage: 200V
  • Material: Plastic, metal
  • Module Size: 50x50x26mm
