Dual Motor Driver Module L298N

by OEM
The L298N H-bridge Module, allows you to control the speed and direction of two DC motors, or control one bipolar stepper motor with ease. The L298N...
19-00010175
Gross Weight: 0.03kg
Company: OEM
Made in: China
In Stock
Ships in 24 Hours
No stock in retail store
4.20
Without VAT 3.39
+
WISHLIST COMPARE

DESCRIPTION

The L298N H-bridge Module, allows you to control the speed and direction of two DC motors, or control one bipolar stepper motor with ease. The L298N H-bridge module can be used with motors that have a voltage between 5 and 35V DC. The L298N is an integrated monolithic circuit. It is a high voltage, high current dual full-bridge driver designed to accept standard TTL logic levels and drive inductive loads such as relays, solenoids, DC and stepping motors.

SPECIFICATIONS

Driver Type:
  • DC Motor
  • Stepper
Max. Current per Channel:
2A

SPECIFICATIONS

  • Driver: L298N Dual H Bridge DC Motor Driver IC
  • Motor Power Supply Vs: +5 V to +35 V
  • Max average current: 2A
  • Peak current Io: 3A
  • Logic Level Power Vss: +5 V ~ +7 V (Onboard 5V Regulator can be used if Motor Power is > 7.0V)
  • Logic level power: 0 - 36mA
  • Logic signal input range: [ Low:-0.3V ≤ Vin ≤ 1.5V] [ High: 2.3V ≤ Vin ≤ Vss]
  • Maximum power dissipation: 20W (when the temperature T = 75 ℃)

Διαστάσεις

  • 43.6 x 43.6 x 25.5mm
  • Weight: 26g

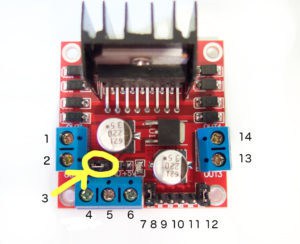

Συνδεσμολογία

  1. DC motor 1 “+” or stepper motor A+
  2. DC motor 1 “-” or stepper motor A-
  3. 12V jumper – remove this if using a supply voltage greater than 12V DC. This enables power to the onboard 5V regulator
  4. Connect your motor supply voltage here, maximum of 35V DC. Remove 12V jumper if >12V DC
  5. GND
  6. 5V output if 12V jumper in place, ideal for powering your Arduino (etc)
  7. DC motor 1 enable jumper. Leave this in place when using a stepper motor. Connect to PWM output for DC motor speed control.
  8. IN1
  9. IN2
  10. IN3
  11. IN4
  12. DC motor 2 enable jumper. Leave this in place when using a stepper motor. Connect to PWM output for DC motor speed control.
  13. DC motor 2 “+” or stepper motor B+
  14. DC motor 2 “-” or stepper motor B-
