Dual Motor Driver Module L9110S

19-00010992
The L9110S 2-Channel motor driver module is a compact board that can be used to drive small robots. This module has two independent motor driver chips which...
2.50
Διαθέσιμο
+
Προσθήκη στα Αγαπημένα
Διαθεσιμότητα Καταστήματος
Εξαντλημένο
διαθέσιμο για online αγορά

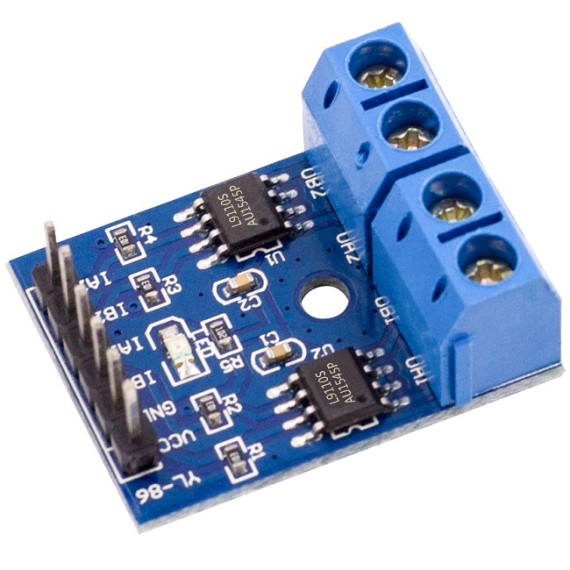

The L9110S 2-Channel motor driver module is a compact board that can be used to drive small robots. This module has two independent motor driver chips which can each drive up 800mA of continuous current. The boards can be operated from 2.5V to 12V enabling this module to be used with both 3.3V and 5V microcontrollers. A set of female header pins is used to connect this module to a microcontroller. The motors are attached via two sets of screw terminals. A PWM Pulse Width Modulation signal is used to control the speed of a motor and a digital output is used to change its direction. This module can also be used to drive a single four line two phase stepper motor. One hole make this board easy to mount onto your robot or other project.
Κατασκευαστής :
OEM
Χώρα Προέλευσης:
Κίνα
Max. Current per Channel:
0.80A
Τύπος Οδηγού:
  • DC Motor
  • Stepper
  • On-board 2 L9110 motor control chip
  • Module can be driven by two dc motors at the same time or one phase 4 line 2 type stepping motor
  • Input voltage: 2.5-12V DC
  • Max Continuous Current per Channel: 800 mA
  • Motor Channels: 2
  • 28.4x21.6x14mm

6p black bending row needles explain

  • VCC — external 2.5 V to 12 V voltage
  • GND — external GND
  • IB1 — external microcontroller IO port
  • IA1 — external microcontroller IO port
  • IB2 — external microcontroller IO port
  • IA2 — external microcontroller IO port
4p blue terminal instructions
  • OA1 OB1 connecting DC motor 2 pin, no direction
  • OA2 OB2 connecting DC motor 2 pin, no direction

Directions for use

Connecting VCC, GND module power indicator lighting
  • IA1 input high level, IA1 input low level, OA1 OB1 motor forward
  • IA1 input low level, IA1 input high level, OA1 OB1 motor reverse
  • IA2 input high level, IA2 input low level, OA2 OB2 motor forward
  • IA2 input low level, IA2 input high level, OA2 OB2 motor reverse
