Αρχική Σελίδα/Ρομποτική/Επικοινωνία/WiFi/ESP32 Development Board - ESP32-DEVKITC-32D

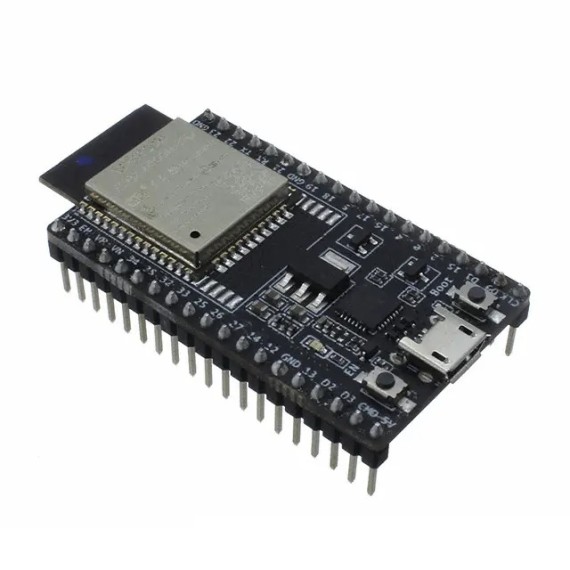

ESP32 Development Board - ESP32-DEVKITC-32D

Κωδικός:

05-00098439

Part Number: ESP32-DEVKITC-32D

ΚατασκευαστήςESPRESSIF Part NumberESP32-DEVKITC-32D

Διαθέσιμο

Αποστολή σε 24 ώρες

€12⁴⁰

+ −

Κάνε μια ερώτηση

Διαθεσιμότητα Καταστημάτων

Πληρωμή & Μεταφορικά

Περιγραφή
Χαρακτηριστικά

ESP32-DevKitC is a small-sized ESP32-based development board produced by Espressif. Most of the I/O pins are led out to the pin headers on both sides for easy interfacing. Developers can connect these pins to peripherals as needed. Standard headers also make development easy and convenient when using a breadboard.

Small and convenient development board with ESP32-WROOM-32 module installed, break out pin headers and minimum additional components. Includes USB to serial programming interface, that also provides power supply for the board. Has pushbuttons to reset the board and put it in upload mode. Comparing to the previous ESP32 Core Board V2 / ESP32 DevKitC, instead of ESP32-WROOM-32 it can accommodate ESP32-WROVER module and has CP2102N chip that supports faster baud rates.

Programmers and development kits features: I/O lines on pin header
Ciphering: AES, WPA, WPA2-PSK, WPS
Protocol Supported: 802.11 b/g/n
Frequency: 2.4 GHz to 2.5 GHz
Operating Supply Voltage: 5 V
Series: ESP32
Brand: Espressif Systems
Interface Type: USB
Product Type: WiFi Development Tools
Interface:
- GPIO
- I2C x2
- I2S x2
- SDIO
- SPI x3
- UART x3
- USB
Kind of connector:
- USB micro
- pin strips

New and Powerful

Built around ESP32-WROOM-32, this minimum system development board achieves optimal performance with its rich peripheral set, Wi-Fi and Bluetooth connectivity offered by our flagship SoC, ESP32. The limit is your imagination!

Rapid Prototyping

Get right into application design and development without worrying about RF performance and antenna design. ESP32-DevKitC has your basic system-requirements already covered. Just plug in the USB cable and you’re good to go!

Flexible and Feature-Rich

ESP32-DevKitC contains the entire basic support circuitry for ESP32-WROOM-32, including a USB-UART bridge, reset- and boot-mode buttons, an LDO regulator and a micro-USB connector. Every important GPIO is available to the developer.

Breadboard-Friendly

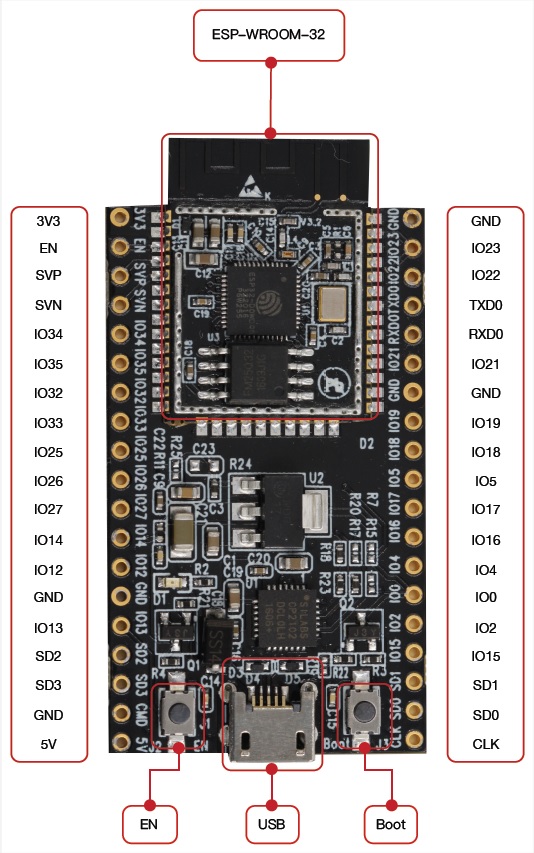

The ESP32-DevKitC pinout is optimized to enable prototyping on a breadboard. The on-board LDO output is led out for powering up additional off-board electronics. Peripheral outputs are grouped together for hassle-free prototyping.
